Concord is a powerful multi-systems metal detector that combines the functionality of enhanced Long-Range Locator technology for detection of deep metal objects from long distances within wide area, in addition to new unique Pulse Induction technology for detection which provides efficient detection of small metal objects

Depth

Made In

Brand

Warranty

Targets: Concord is a powerful multi-systems metal detector

SKU: GER-GD-ESY-2-2-1

Description

  • Details

    Concord gold detector

    Concord is a powerful multi-systems metal detector that combines the functionality of enhanced Long-Range Locator technology for detection of deep metal objects from long distances within wide area, in addition to new unique Pulse Induction technology for detection which provides efficient detection of small metal objects such as coins and jewelry through a digital targets identify system to discriminate between different metals with accompanying acoustic feedback.

  • Device Features

    Mega Detection offers through Concord an affordable device with sufficient powerful features that assist the newbies prospectors or professional treasure hunters to detect all kinds of metal targets.

    Concord offers the possibility of detecting targets through a modern and simplified interface that includes ease of use, multilingualism, a smooth visual menu system and screens that provides the user with the necessary tools to adjust the settings of the search process and see the results on the device screen through visual indicators accompanied by an audio feedback.

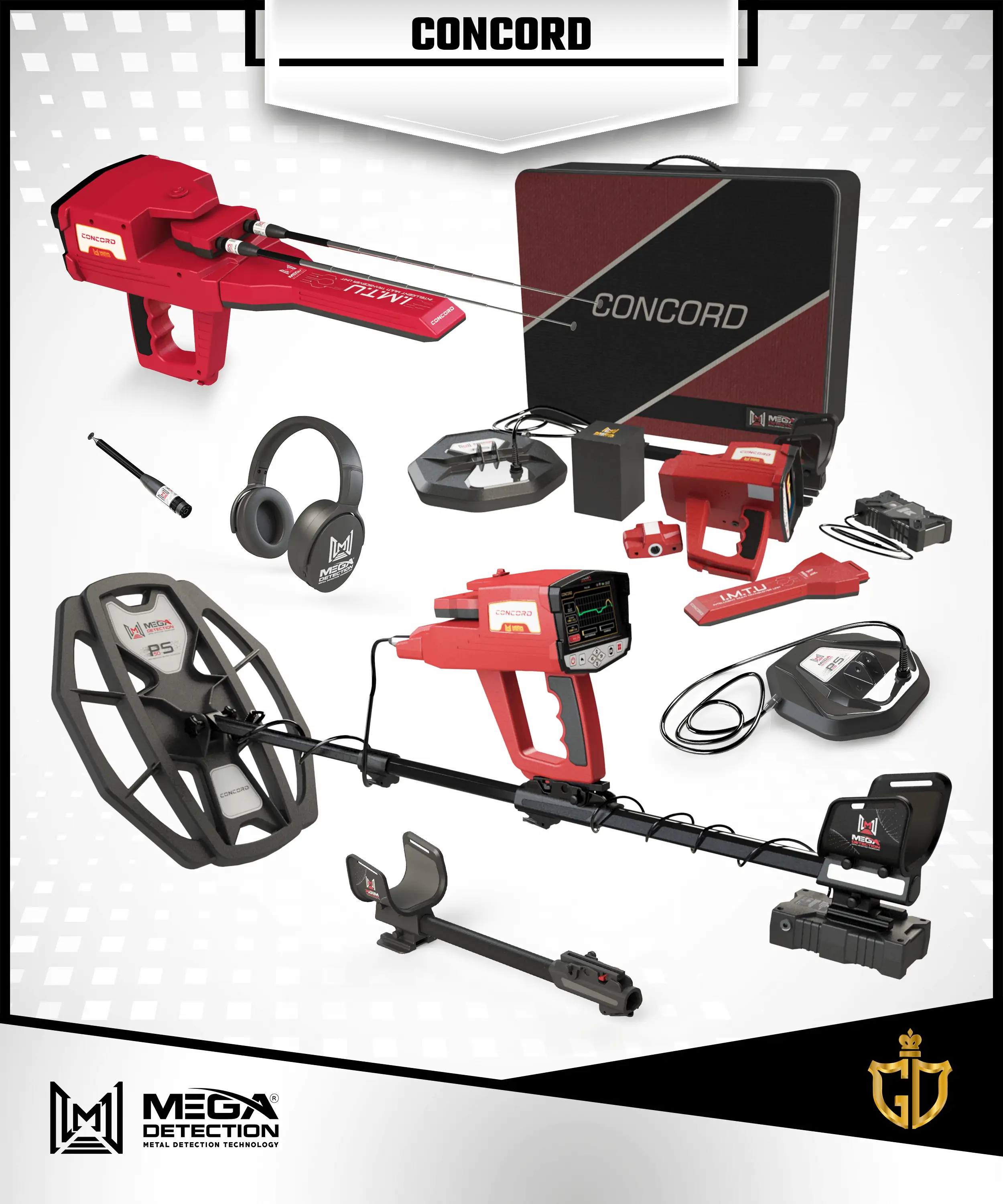

    CONCORD Metal Detector

    • Concord metal detector is a powerful multi-systems device that combines the functionality of a Long-Range locator with a unique Pulse Induction system with smart features and complete visualization of all systems, easy to use multilingual software program.
    • 5 Search systems suitable for different metal detection applications
    • Powerful detection tools include the I.M.T.U probe and PS50, PS36, PS28 search coils.
    • The modern design of the device and its accessories are made of high-quality materials that combine lightweight and beautiful appearance, with ease in installation and disassembly, while providing the best experience of use for the prospector in search fields.
    • Brand new long-range locator metal detection technology with enhanced detection performance, wider scan range up to 3000 m, and great depth range that reach 50 meters.
    • 3 Long Range Locator (LRL) sub-systems include Auto LRL, Manual LRL, CTRL LRL with different options to customize the search process and visual indicators on the device screen to get the best results.
    • Unique Pulse induction system using the large PS50 incorporates new technology that brings great performance in ferrous and non-ferrous metal detection in different ground conditions, soil types, and terrain.
    • Brand new Smart Detect system with two modes via PS36 and PS28 search coils, a perfect choice for prospectors to find natural gold nuggets, small relics, jewelry, coins, and other metal types at small depths.
    • 5 Inch large-size LCD screen for more comfortable experience during settings adjustment and reading or seeing visual indicators that displayed on the screen.
    • Powerful modern easy to use graphical software program available in 12 international languages, taking into account the latest developments in the field of user experience, enabling easy selection of search systems, adjustment of search settings and selecting search programs, adjusting distance and depth range, and viewing results in a visual manner.
    • Operated via an external lithium-polymer battery located in a distinctively designed plastic box for better portability and replacement, the battery can be recharged and guarantee a long period of operation time.

    Modern Software Program

    The user interface of the Concord software program was designed according to the latest modern software technologies in the field of interface design according to an attractive modern design with a consistent color theme and graphical icons that present the search systems, options and settings of the device in an easily understandable way for the novice or professional user alike.

    The design of the screens and controls has been taken into account the best guidelines of user experience that provide the user with the best possible, flexible and easy use of the device while providing ease of control to adjust the different values and settings related to the various search systems available in the device.

    Search Systems Screen

    It allows the user to choose the search system by selecting the search system icon from the list via the buttons on the control panel.

    User can choose between 5 different search systems, which were previously explained in detail.



    جولدن ديتيكتور |

    Language Screen

    In order to provide Concord for all prospectors around the world, the device’s program and interfaces are available in different and most spoken international languages, including the most important languages in the world.

    The user interface language can be easily changed within the device’s settings and user can choose from 12 languages to cover most countries around the world.

    Supported languages includes:

    1- German

    2- English

    3- French

    4- Spanish

    5- Russian

    6- Italian

    7- Arabic

    8- Hebrew

    9- Persian

    10- Turkish

    11- Urdu

    12- Chinese



    Date & time Settings

    One of the useful features for the user of the Concord is the ability to set the date and time to match the real date and time, and the device keeps these values ​​even if it is turned off.

    The device displays a digital clock that includes the current time and appears continuously at the top right of the screen to enable the user to know the time when he searching in the fields, especially with the knowledge that when searching, the user should not carry metal objects such as a wristwatch or a mobile phone because they affect the capture of magnetic signals.



    جولدن ديتيكتور |

    The importance of the possibility of the date and time subject is also evident when saving the search files or the values ​​of the ground scanning process, as they are automatically saved with a name that includes the date of the day and the time at which the file was saved, and this guarantees the user the ability to return and analyze the search process that was conducted in a specific place on a specific date.

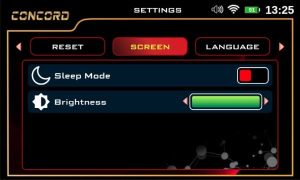

    Screen Settings

    In this screen user can control some useful settings related to the device’s screen, namely:

    • Energy Saving Mode

    In the case of activating it, the value of the time that the device needs to turn off the screen can be set (in the event that no button is pressed for a while), and this ensures that the battery power is saved for a longer use.

    • Screen Brightness

    The screen brightness value can be controlled within a specific value to suit the user’s conditions in terms of time during the day or night and weather conditions like in foggy or rainy days.

    This option can be useful to save battery power when it is set to low values.



    جولدن ديتيكتور |

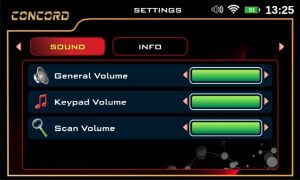

    Sound Settings

    The device features various audio alerts depending on the search system used.

    Within the device’s settings, you can adjust the volume of the sound and various alerts:

    • General sound: It controls the general volume of the device sound (speaker sound volume).
    • Keypad sound: to adjust the sound volume of control panel buttons
    • Scan sound: adjust the sound volume of sound issued when conducting the ground scan via the scanning tools
    جولدن ديتيكتور |

    Power

    Use this option to save power and energy of battery during device usage.

    By using this option, the battery life time will be extent 50% at least ant it depends on the type of searching system and type of connected sensor



    جولدن ديتيكتور |

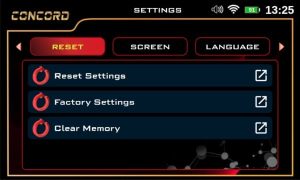

    Reset

    Here the user can set the following options

    • Reset Settings: reset general settings without deleting previously saved scan files.
    • Factory Settings: reset to the factory values (the values when purchasing the device from the factory) while deleting the saved files
    • Clear Memory: clean memory to free up the device’s memory of all saved files.



    جولدن ديتيكتور |

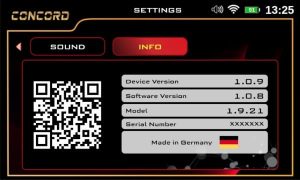

    Device information

    This screen displays the device information, which are:

    • Device Version
    • Software version
    • Device Model
    • Serial Number
    • Manufacturer Country
    • QR code: the user can read it to obtain useful information about the device, including the manufacturer website



    جولدن ديتيكتور |

    Security settings

    • Pin Lock: activate or deactivate the screen lock
    • Set Pin: here user can set a pin number (a number that without entering it correctly any person can’t access and login to the device software program)



    جولدن ديتيكتور |

    SEARCH SYSTEMS

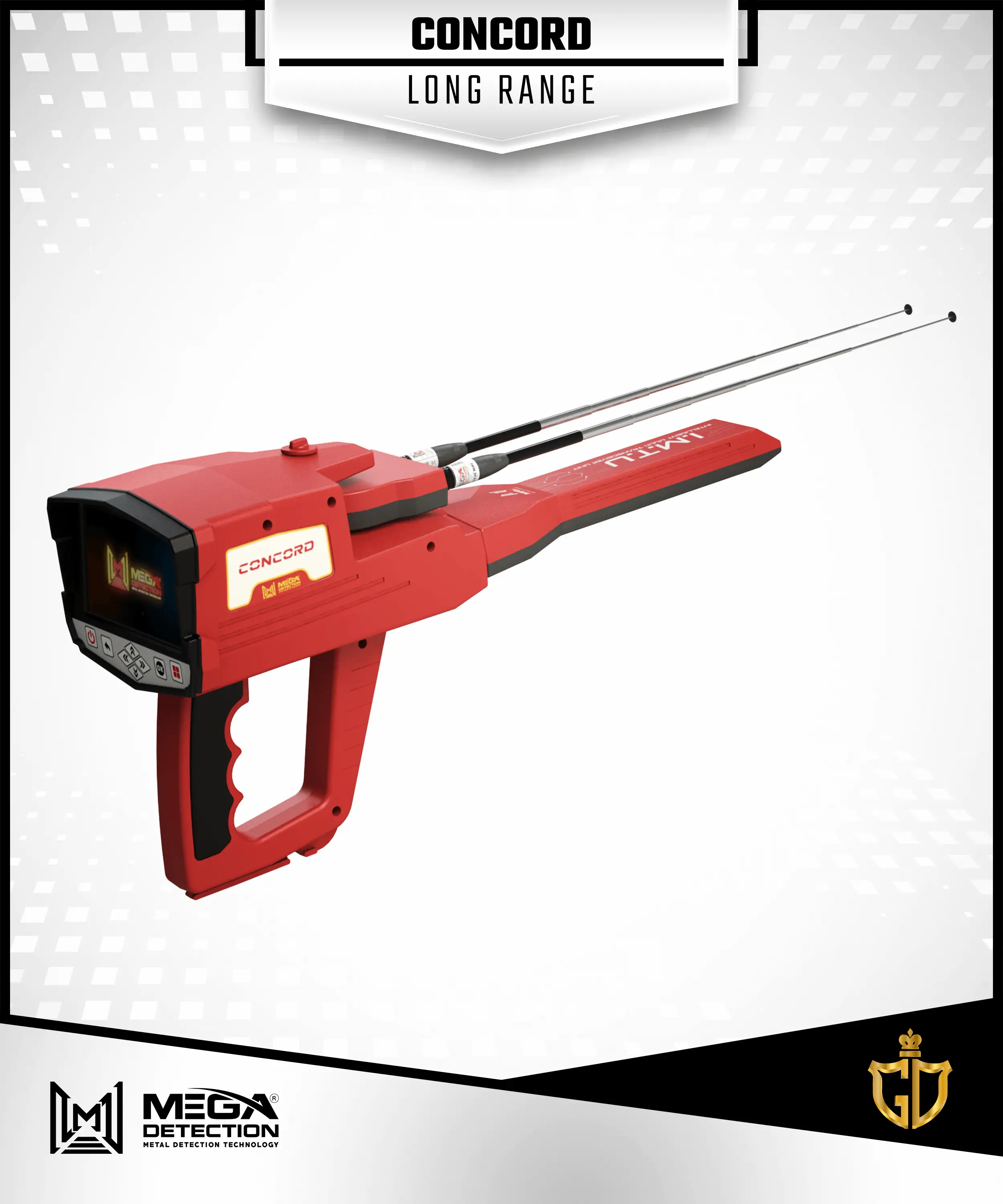

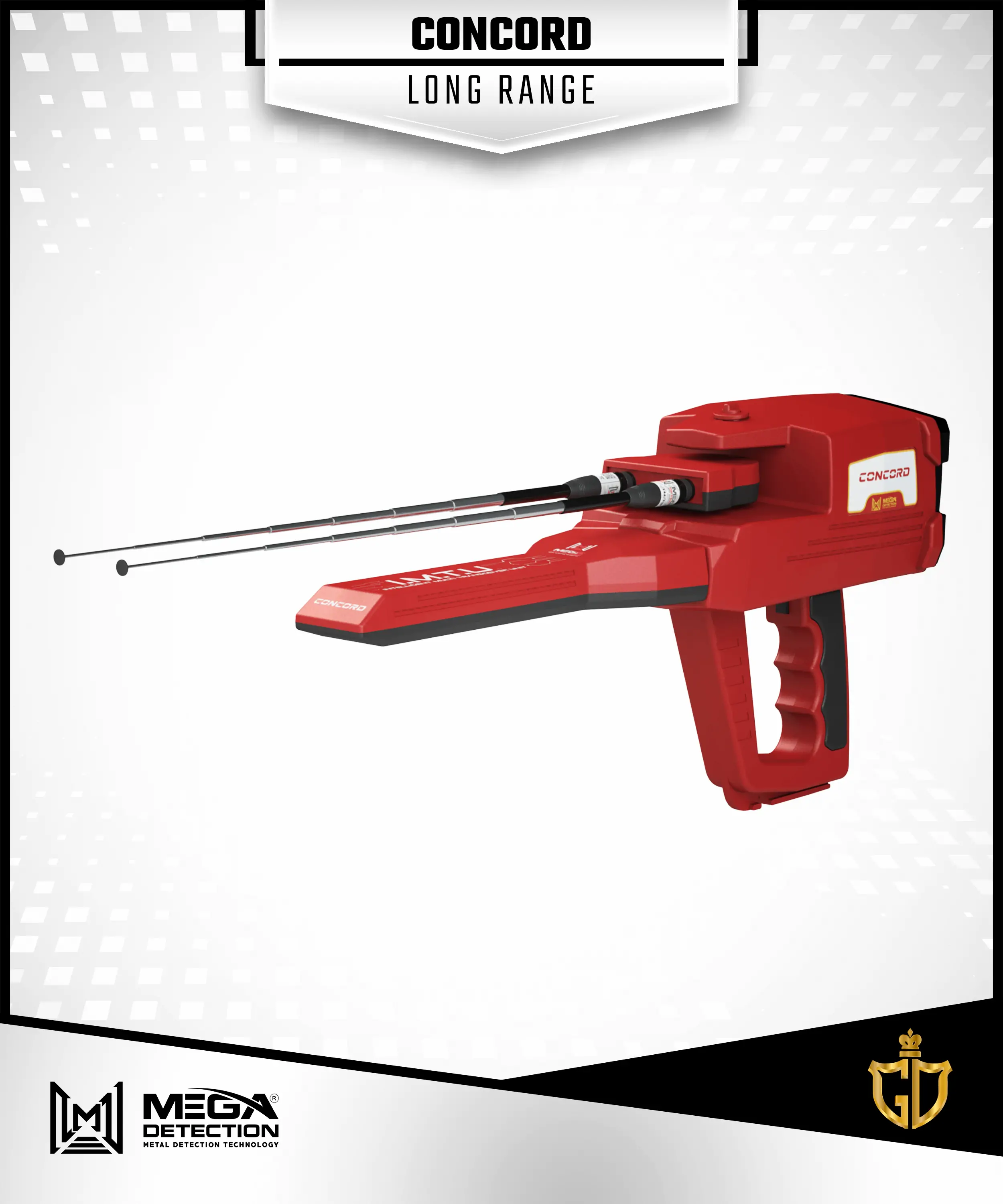

    1 – Automatic Long-Range Locator [AUTO LRL]

    AUTO LRL search system uses a special probe called the Intelligent Multi Transceiver Unit or I.M.T.U, to search for the signals of potential targets within the long-range scanning field and the reflected signals are received through a pair of antennas.

    It is an advanced search system that covers large regions of the search area and this system has the ability to automatically identify all types of buried metals within a scanning area of up to 3000 m and depths up to 100 m, and display the results in the form of values that indicate the percentage of detected targets in the surround of the prospector.

    Here is a list of settings that can be adjusted by the user:

    Distance

    It is the distance in front-range or direction of search and can be set in 0 – 3000 m range

    Depth

    It is the maximum depth of possible targets that the device can reach to find potential targets, its value can be set in 0 – 100 m range

    جولدن ديتيكتور |



    After selecting of previous settings the user can start the search process , and during search the antennas will move left or right depending on possible nearby targets , a visual indicator on screen will guide the user as it display a left or right progress bar with gradient colors from green (minimum) to red(maximum value) depending on progress bar value .

    جولدن ديتيكتور |



    The user must track the movement of antennas tell he got a best signals and after finishing he can move to next screen “Report” screen that will display a visual report about possible target as four horizontal bars (gold – silver – iron – diamond) , every bar will display an estimated percentage value that indicate probability of target composition.



    جولدن ديتيكتور |



    2 – Control Long-Range Locator [CTRL LRL]

    The frequency control system is one of the new technologies and important features that have been incorporated into Infinity Max Pro, which enables the user to choose the exact value of the search frequency in order to search for any type of targets that the prospector tries to reach and find, thus ensuring more accurate results.

    When searching using this system, the user can also set various other values and settings related to the search, which are search frequency, soil type and front distance as it is detailed below:

    • Soil Type

    It is the type of soil and can be set depending on the ground that the prospectors search in it, and can be set to one of following types:

    Rock – Neutral – Mixed – Metallic – Clay – Sandy – Mineral – Chalky –Salty



    جولدن ديتيكتور |



    Frequency

    User can set the custom search frequency value manually using this option.

    The values range is between 100 and 5000 MHz

    جولدن ديتيكتور |





    Distance

    It is the maximum distance between user location and the target position during the searching process. It means that user can search custom circular distance around himself and this distance start from 0 to 3000 m.

    جولدن ديتيكتور |



    Depth

    It is maximum depth of possible targets that the device can reach to find potential targets, its value can be set in 0 – 50 m range

    جولدن ديتيكتور |

    After adjusting all of previous settings the user moves to scan screen and press “start scan” button to begin the search process.

    The results screen will display a circular indicator, the direction arrow reflects the direction of antennas in degrees, beneath it the signal graph and on the right the inclination bar (alignment tool) that explained previously.

    A small digital compass displayed in top-left corner of screen that point to north.

    3 – Manual Long-Range Locator [MANUAL LRL]

    This search system uses the Intelligent Multi Transceiver Unit or I.M.T.U, which sends high-frequency wave signals in the direction of the search, and the reflected signals are received through a pair of antennas, in this system it is possible to specify the type or program of the target to be searched for, this option means that the device does not receive any signal except for the target signal that has been selected, with options to set the front distance up to 3000 m and the depth up to 50 m before starting the search, this system contains 11 separate search programs, which can be selected from the list of targets.

    In this system, the search values ​​and settings are manually adjusted by the user according to his preferences before starting the search, and the following values ​​can be adjusted:

    • Target

    User can choose the target type, that means a type of metal the target is made of, and he can choose from preset search programs that include all types of ferrous and non-ferrous metals

    Examples: gold – silver – copper – diamonds – gemstones



    جولدن ديتيكتور |

    Distance

    The distance value reflects the scanning field in the forward direction, and the value can be chosen accurately within a range between 0 – 3000 meters

    جولدن ديتيكتور |



    Depth

    It is the value of the maximum search depth that can be accessed through the current search settings, and the value can be set precisely within the range from 0 to 50 meters.



    جولدن ديتيكتور |



    After adjusting the previous search settings, a digital compass appears on the device’s screen, containing an indicator indicating the direction of the device (for example, towards the north), with a graded indicator in the form of a semicircle that represents the direction of movement of the antennas according to the user’s movement when searching.



    جولدن ديتيكتور |



    Among the important features that allow the user to accurately and correctly adjust the angle of inclination of the device is the gradient tilt indicator, which represents the degree of inclination of the device from the horizon, the green color indicates the correct values, and the red color for the wrong values ​​of the inclination angle.

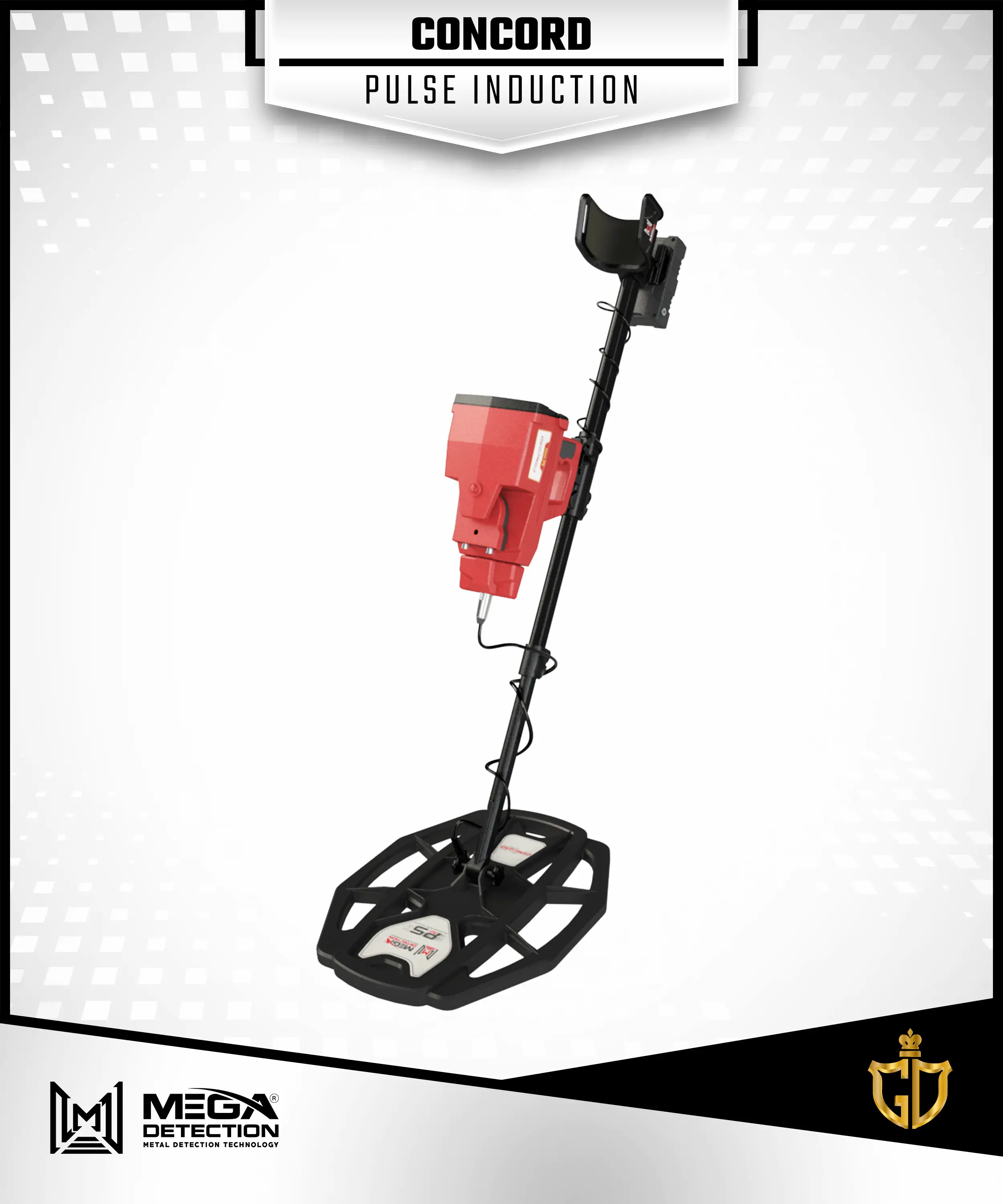

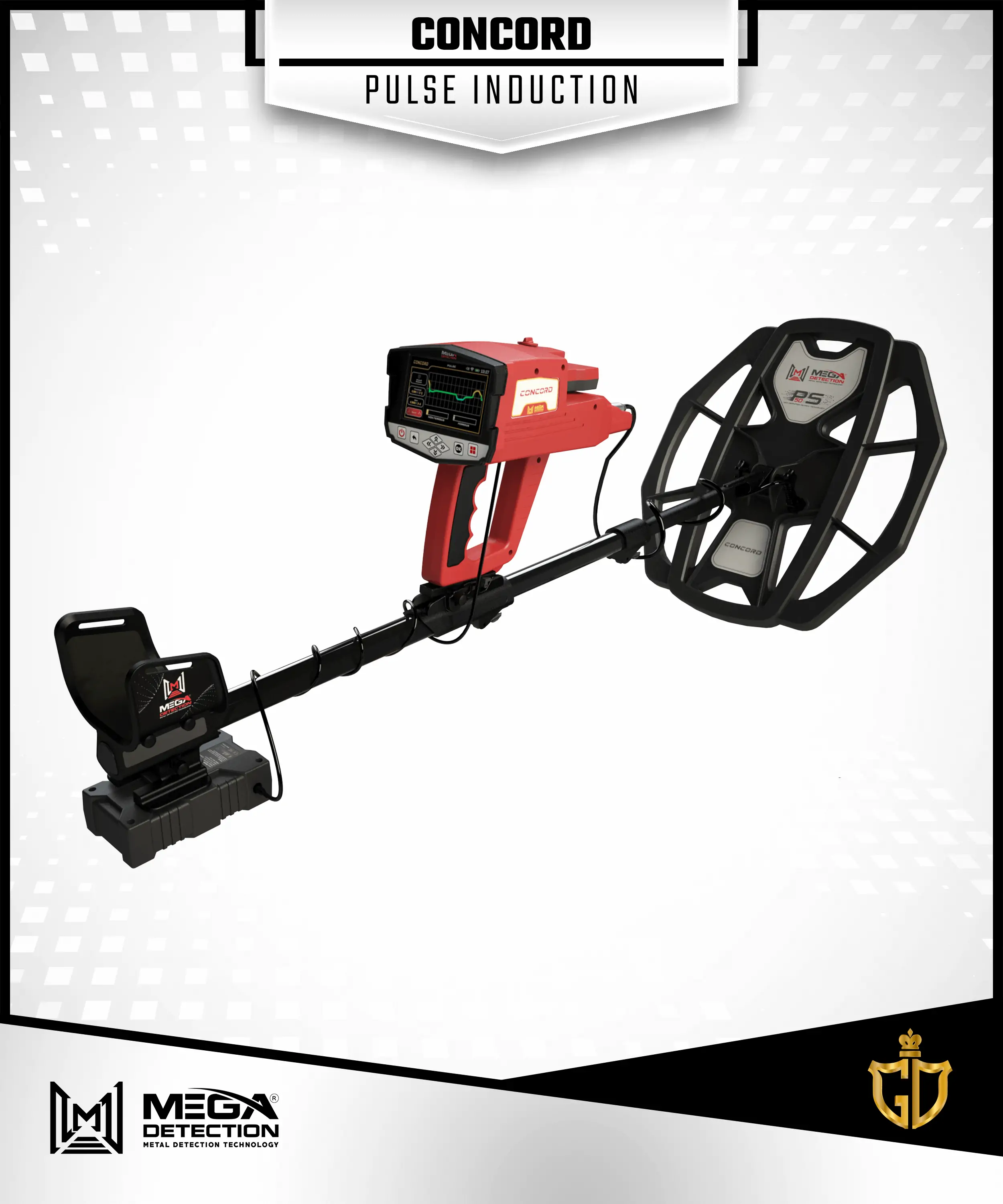

    4 – Pulse Induction System [PULSE INDUCTION]

    This system incorporates new technology that bring great performance in ferrous and non-ferrous metal detection in different ground conditions, soil types and terrain.

    Pulse Induction system use a powerful PS50 a Double D (DD) search coil to detect buried metallic object that offer great search depth and efficiency to detect hard to find targets.

    The received signals visualized on device screen and audio tones provide additional feedback for user to know target type.

    User can adjust following settings or options

    Ground Balance

    This option provides adjusting the ground balance according to the terrain in the search area, this is done by pressing the OK button once while keeping the DD search coil parallel to the ground until the process is completed, it is important to perform ground balance before starting the search.

    Threshold

    This option can control the threshold of sound of the received signals, which can be set according to the user’s preference, either to hear the weakest faint signals coming from very small targets or to ignore them to focus on hearing the signals of larger-size targets.

    The user can set the value between 1 and 6.

    Gain

    This setting refers to the option that controls the volume of received signals, which are located at greater depths (deep, not shallow targets), as it can be set within a range of values from 1 to 6, and the higher number indicates a higher volume

    Sound

    This option adjusts the audio tone settings, where it is possible to choose between several levels of tones, and by changing them, the visual representation of the signals changes.



    جولدن ديتيكتور |



    The results screen in the pulse induction system displays to the right of the buttons corresponding to the previous settings, a colored 2D graph that changes according to the target over which the PS50 coil passes and the bottom of the graph displays two indicators corresponding to the type of target detected (ferrous or non-ferrous) whose length changes according to the received signals.

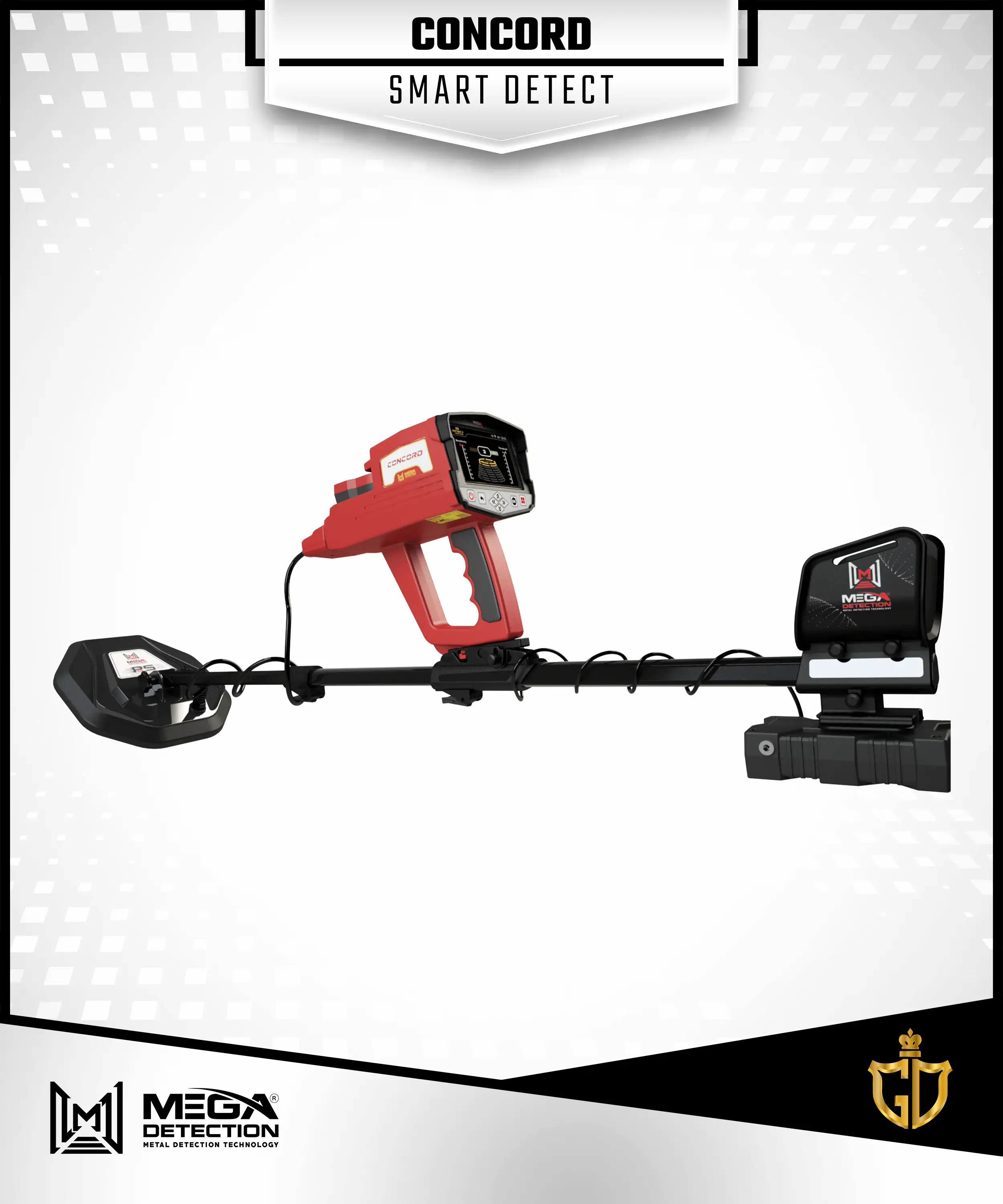

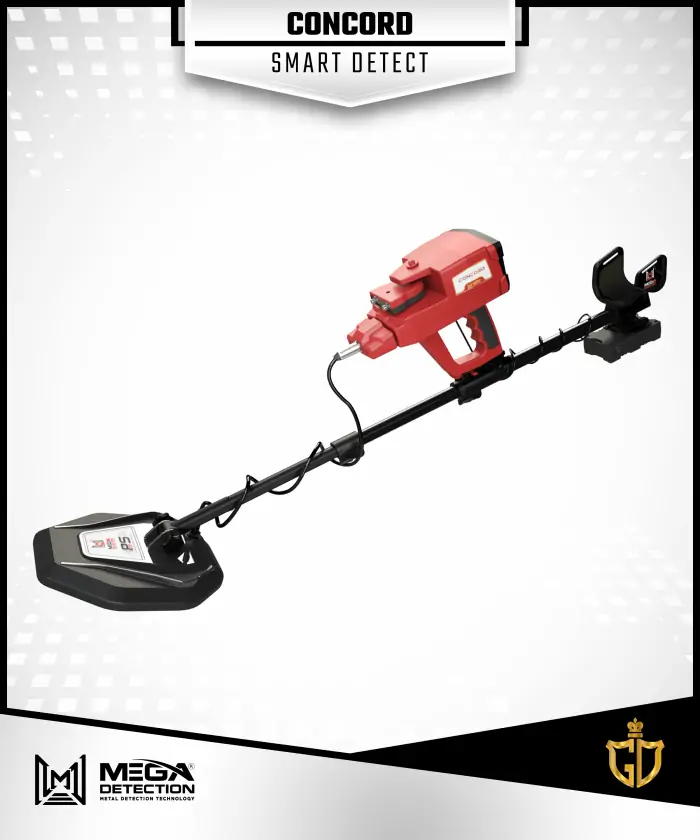

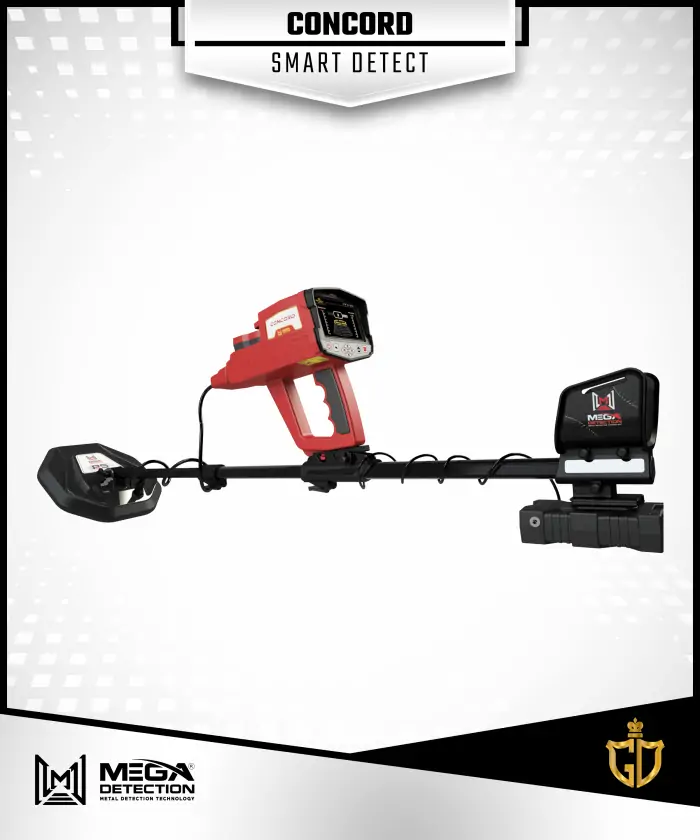

    5 –Smart Detection System [SMART DETECT]

    Smart detect system is a perfect choice for prospectors to find natural gold nuggets, small relics, jewelry, coins and other metal types at small depths about 3 meters or less.

    Developed with enhanced technology in terms of features, metal discrimination and two search coils (PS36, PS28) to offer best performance in all terrain and soil types.



    جولدن ديتيكتور |



    When conducting a search with the smart detection system there are two sub modes that correspond to each search coil:

    1 – Mode 1 / PS36

    Use the PS36 [a coil with 36 cm diameter] to detect targets, the device display a screen that includes indicators and buttons through which the detection settings and options can be set, as follows:



    جولدن ديتيكتور |



    • Calibration

    By selecting this button and pressing the OK button, the user can perform a calibration of the coils before starting the search, for more accurate results.

    • Detection Mode

    Choosing the detection mode is done by activating one of the three buttons corresponding to detection mode, which are:

    1 – All Metals

    It is a general detection mode, by activating it, the device can receive signals from ferrous and non-ferrous metal targets.

    2 – Non Ferrous

    By activating this detection mode, the device will filter the signals to receive signals of non-ferrous metal targets only such as gold, silver and copper, meaning that the device ignores the signals of targets made of ferrous materials

    3 – Ferrous

    This detection mode is opposite to the previous mode, where the device receives signals from iron targets only, such as iron, and ignores the signals of other metals

    • Sound

    The sound that comes out through the internal speaker on the device is enabled or not through this option, which is a useful in the case that the user wants to know the type of target through the digital indicator without hearing the sound like in noisy environments.

    • Target ID Indicator

    It is a circular digital graphic indicator that displays in the center of the circle a number called the digital target identifier (Target ID) corresponding to a specific type of metal such as gold.

    On both sides of the circle, there are two symmetrical semi-circular indicators made up of bars that are gradually colored from bottom to top according to the strength of the target signal and according to the selected detection mode.

    In case of the All Metal detection mode, the left semicircular indicator is activated only if the target is non-ferrous and is in gradual colors from yellow to red, however in case of a ferrous target, the right indicator is activated only, and the color gradient is from green to blue.

    In the case of Non Ferrous detection mode, the two indicators are activated in gradual colors from yellow to red (number of colored bars depends on signal strength).

    In the case of Ferrous mode, the two indicators are activated in gradual colors from green to blue.



    • Threshold

    This option can control the threshold of sound of the received signals, user can set it using vertical indicator with values from 1 to 6 , it increases with number that mean higher threshold value correspond to hearing weakest signals for example coming from very small gold nuggets .



    2 – Mode 2 / PS28

    Use the PS28 [a coil with 28 cm diameter] to detect targets, the device display a screen that includes two vertical indicators on sides and graphical indicator in middle.

    جولدن ديتيكتور |

    The explanation these indicators as follows:

    • Sensitivity

    The left vertical indicator define sensitivity level , user can set it to one of 9 levels , the higher the sensitivity value corresponding to detection of smaller targets and vice versa .

    • Threshold

    It is right-side vertical indicator define threshold value , user can set it to one of 9 values  the higher the value corresponding to hearing sounds of smallest targets , and smallest values match hearing sound of larger targets.

    • Signal Indicator

    It is graphical indicator in middle of screen, display a Target ID number and FE / NONFE indicators that enabled based on metal type ( ferrous or non-ferrous) , plus the visual signal indicator which displays a set of circles with increasing diameters from top to bottom that light up (activated) based on the signal strength of the detected target

    جولدن ديتيكتور |

    Specifications
    Package Package Dimensions 68 x 51 x 28 cm
    Package Weight 17 Kg
    Material ABS Plastic
    CPU Processor Type ARM 64 Bit
    Processor Frequency 1.4 Ghz
    Memory Storage Memory 32 GB
    Memory Type SD Card
    Screen Screen Type High Resolution TFT LCD
    Screen Size 5 Inch
    Screen Resolution 1024 x 860
    Colors 16 million
    Wi-Fi Connection 2.4 Ghz
    Sound Output Speaker – Headset
    Jack Type 3.5 mm
    Headset Wired Headphones
    Internal Speaker Yes
    Power Battery Type Lithium-Ion
    Battery Capacity 21000 mAh
    Fast Charging No
    Removable Battery Yes
    Languages German – English – French – Spanish – Russian – Italian – Arabic – Hebrew – Persian – Turkish – Urdu – Chinese
    Temperatures Operation temperature 0°C – 40°C
    Storage temperature  –20°C – 60°C
    Humidity 5% – 75%

  •

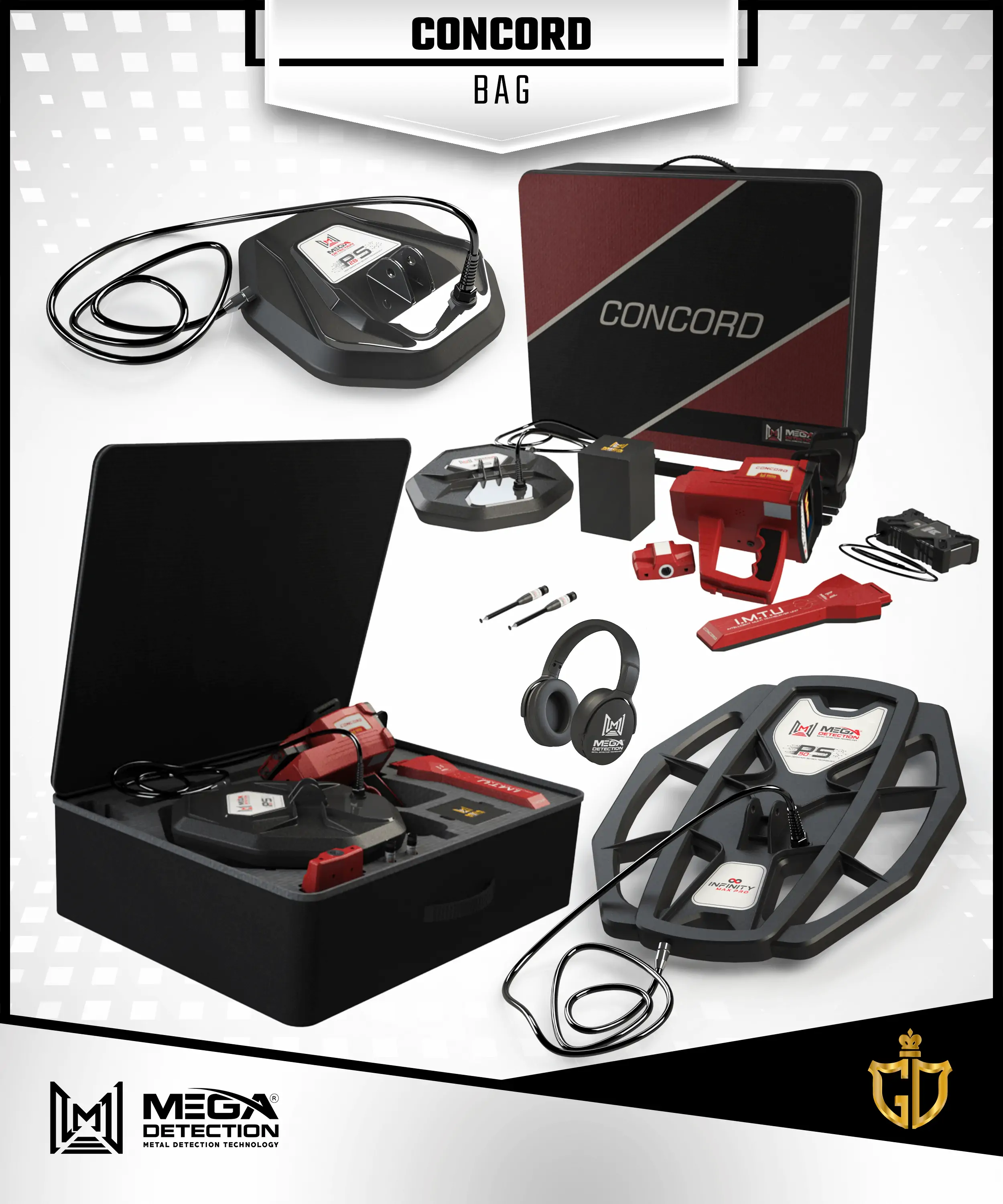

    PARTS AND CONTENTS

    • Main Electronic Unit
    • Smart Sensor
    • Wireless Handle Unit
    • RF Antennas
    • Charger
    • User Manual
    • Warranty Card
