Gold Star 3D Scanner

Gold Star 3D Scanner

$9,500.00

In stock

$9,500.00

Gold Star 3D Scanner from Mega Detection offers the prospector of ancient antiquities and the seeker for buried treasures at great depths, the best integrated and comprehensive solution in terms of the multiplicity of search technologies available in the device, as well as practical applications and uses in the field of metal detection

Depth

Made In

Manufacture

Warranty

Targets: Metal detector and 3D ground scanner with high quality all-terrain performance
SKU: MD-GD-GS

Description

  • Details

    Gold Star 3D Scanner from Mega Detection offers the prospector of ancient antiquities and the seeker for buried treasures at great depths, the best integrated and comprehensive solution in terms of the multiplicity of search technologies available in the device, as well as practical applications and uses in the field of metal detection.

    جولدن ديتيكتور |



  • Device Features

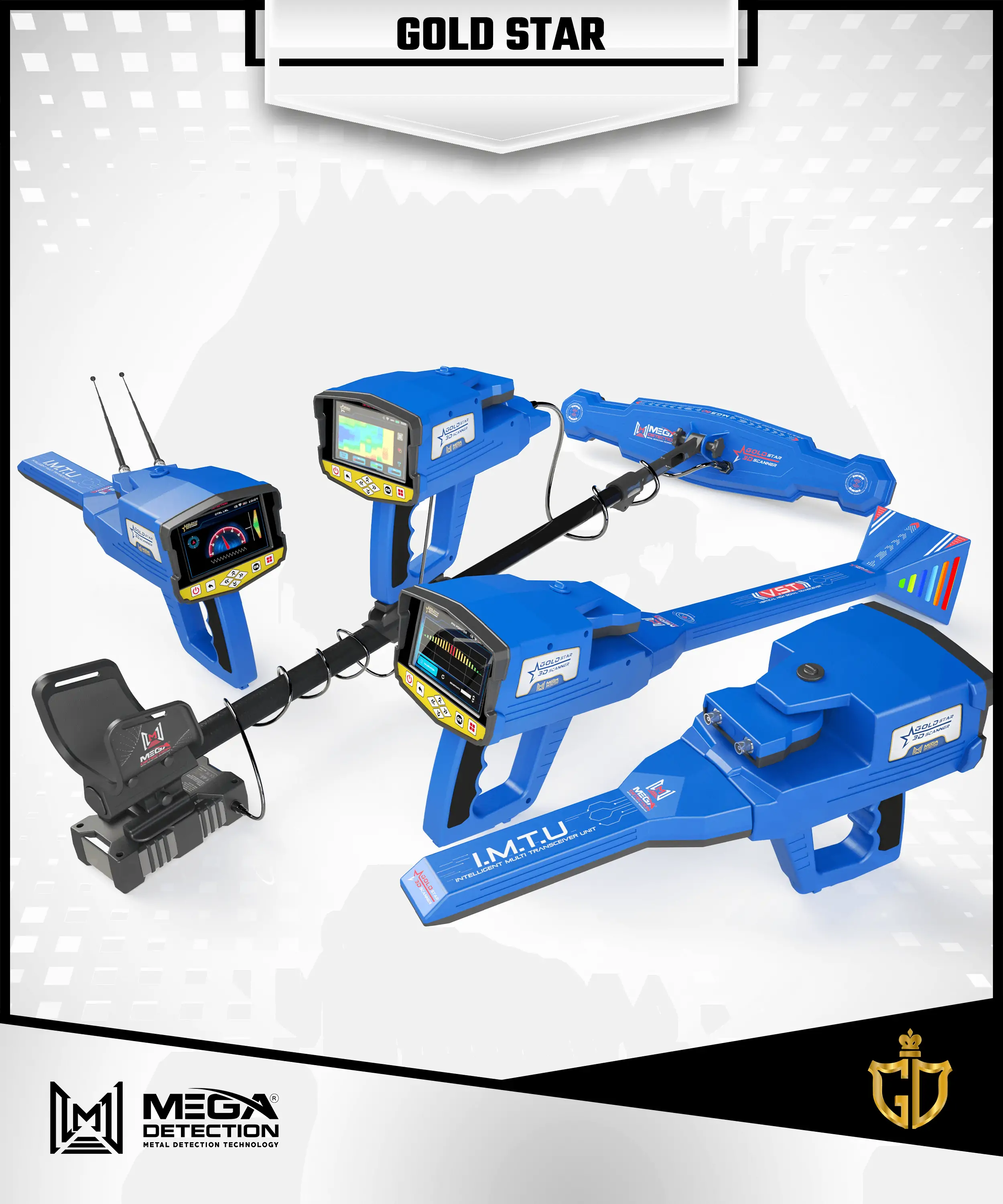

    • Gold Star 3D Scanner is An integrated multi-functional device that combines a professional metal detector and a 3D ground scanner with high-quality performance in all-terrain and accurate, reliable results.
    • A modern and practical design that combines lightweight and aesthetics of look and suitability for long real-life use in the search fields and made of high-quality materials, which provides the user with a comfortable user experience.
    • 8 different search systems that include the latest developments in the field of metal detection technologies with wide options to adjust search settings and options to suit various factors such as the ground soil type, the terrain, the purpose of the search, and the type and metal of buried targets.
    • A completely new patented 3D ground scanning technology that includes advanced search tools that guarantee more accurate results through larger coverage and visual representation of scanning data on the device’s screen or via a tablet computer.
    • An advanced 3D analyzing app that can be downloaded on any tablet or smartphone running Android provides the prospector with great capabilities to analyze the results of the ground scan visually through integrated tools through which can know the type of metal – the exact location or position – the accurate depth of potential targets and target metal type.
    • New and improved technology in long-range metal detection technology that includes performance improvements, a wider scanning field, and more depths up to 50 meters with new tools and options.
    • An integrated feedback system that combines sound, light, and image to provide the prospector with a comprehensive view of the discovered targets and complete information about them.
    • A high-definition color LCD screen with a relatively large size ensures easy to adjust settings, read numbers clearly, and see results visually comfortably.
    • Gold Star 3D Scanner has a Modern easy to use program available in 12 international languages, taking into account the latest developments in the field of user experience, allowing easy adjustment of search settings, selection of search systems and search programs, adjusting distances and depths, and viewing results visually.
    • Gold Star 3D Scanner is operated via an external lithium-ion battery located in a distinctively designed box, the battery can be recharged and guarantee a long period of use depending on the system used for search and other factors.

  • Search Systems

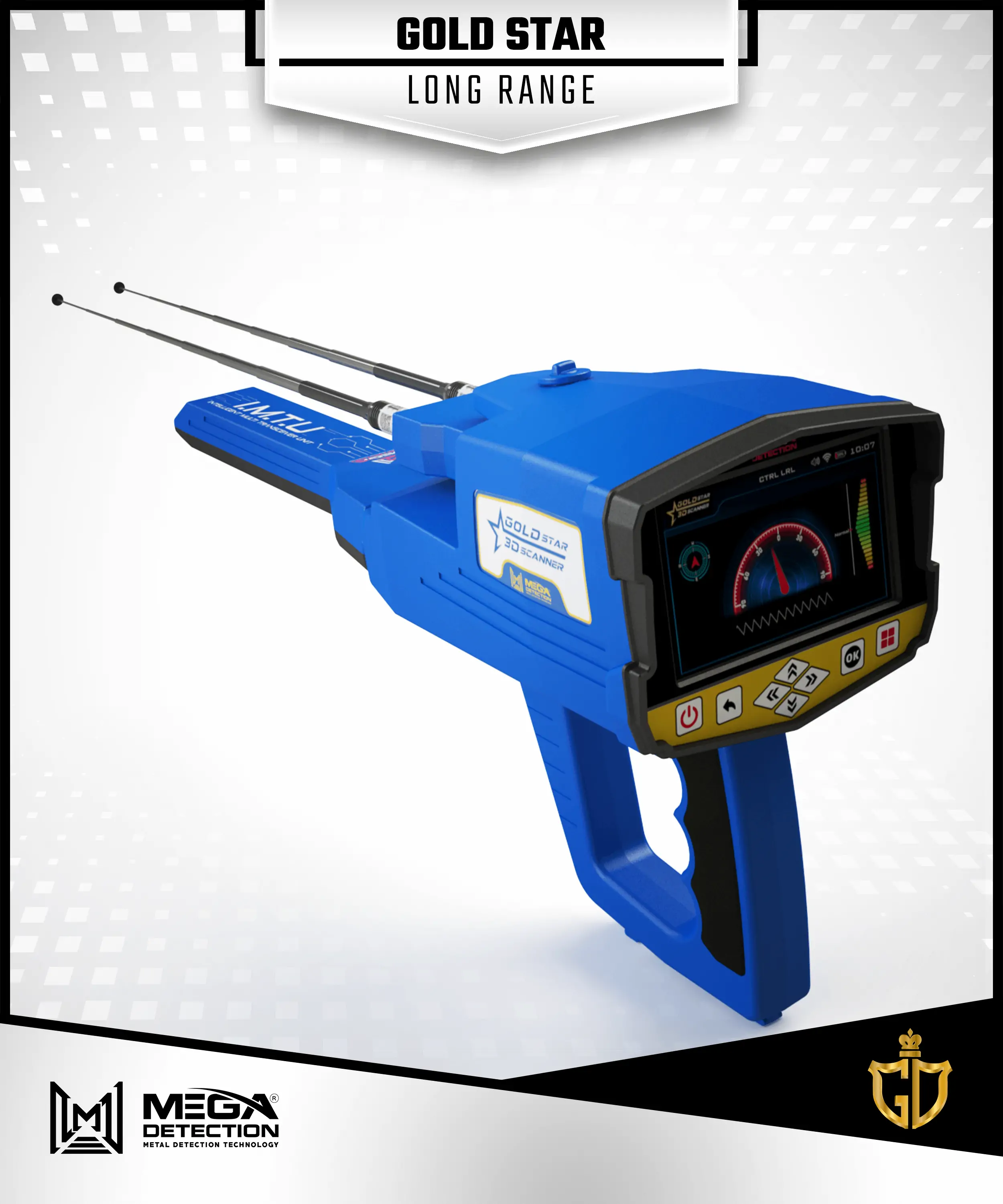

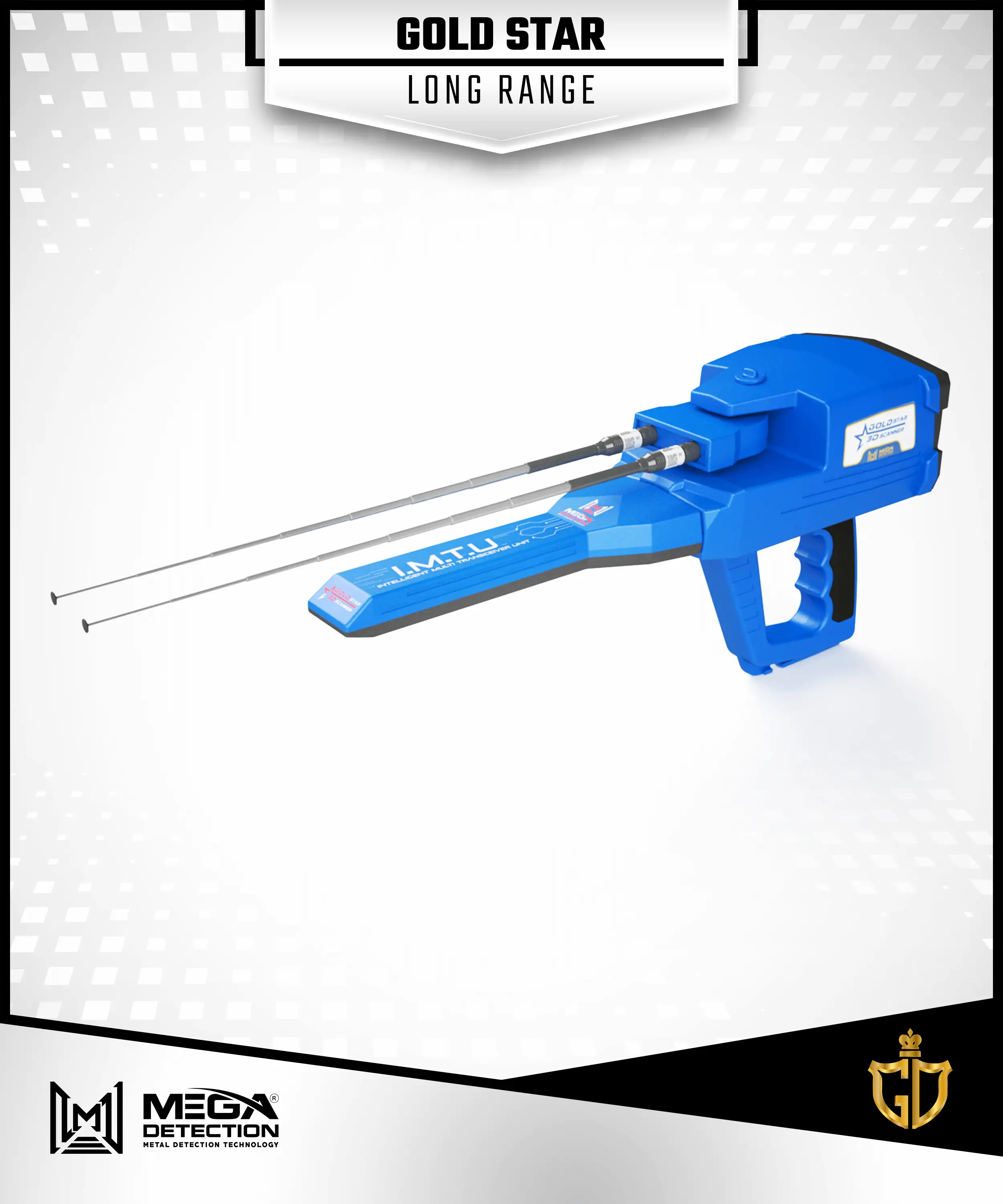

    1 – Manual Long-Range Locator [MANUAL LRL]

    The new Long-Range Locator technology incorporated into Gold Star 3D Scanner through a new powerful detection probe called Intelligent Multi Transceiver Unit or I.M.T.U
    I.M.T.U generates high-frequency wave signals in search direction, these waves intersect with the signals of magnetic fields released from buried metal targets, then reflected signals are received through a pair of antennas, these received signals are converted into digital signals inside the main unit of the device and analyzed and visualized on screen.



    جولدن ديتيكتور |



    In the MANUAL LRL system, many scan settings can be adjusted manually by the user according to his preferences before starting the long-range scan, here are the available settings:

    • Target

    User can choose here the target type, or a type of metal the target is made of, he can choose from preset search programs that include all types of ferrous and non-ferrous metals including:
    Gold Treasure- Gold Ore – Silver – Copper – Platinum – Bronze – Iron – Diamond – Gemstones – Gold Veins – Cavity



    gold star 3d scanner



    • Distance

    The distance value reflects the scanning field in the forward direction, this value can be set within a range between 0 – 3000 meters from pre-set values:
    250 – 500 – 750 – 1000 – 1250 – 1500 – 1750 – 2000 – 2250 – 2500 – 2750 – 3000 m



    gold star 3d scanner



    • Depth

    It is the value of the maximum search depth that can be reached using the current search settings, and the value can be set precisely within the range from 0 to 50 meters.



    gold star 3d scanner



    After adjusting the previous search settings, the screen displays a summary of selected settings and the user can press the (Start Scan) button to start the actual scan process.

    The result screen displays in the upper-left corner a digital compass, containing an indicator indicating the geographic direction of the device (for example, towards the north).

    In the middle of the screen, there is a semi-circle graded scale with direction angle values, zero degrees in the center and a range of 0-90 degrees in both left and right, an arrow-shaped indicator pointing to a specific angle value the represents the direction of movement of the antennas according to the user’s movement when searching.

    On the right of the result screen Inclination Indicator, this indicator is an important feature that allows the user to accurately and correctly adjust the angle of inclination of the device from the horizon, the values with green color – in middle – indicates the correct values, on the other hand, the values with red color indicate the wrong values of the inclination angle during the scan.



    2 – Automatic Long-Range Locator [AUTO LRL]

    AUTO LRL search system uses I.M.T.U and long-range antennas to search for signals of potential targets within the long-range scan field.

    It is an advanced search system that covers large areas in open fields of the determined area, this system has the ability to identify all types of buried metals by analyzing captured signals.

    Here the user can adjust the following settings:

    • Distance

    It is the distance in front-range (forward direction), can be set in 0 – 3000 m range as explained before in Manual LRL system.



    gold star 3d scanner



    • Depth

    It is the maximum depth of possible targets that the device can reach to find potential targets, its value can be set in 0 – 50 m range also like before.

    After selecting previous settings, the user can start the search process, and during the search, the antennas will move left or right depending on possible nearby targets, a visual indicator on the screen will guide the user as it displays left or right progress bar with gradient colors from green (minimum) to red (maximum value) based on target position.



    gold star 3d scanner



    gold star 3d scanner



    The user must track the movement of antennas to tell he got the best signal and after finishing he can move to the “Report” screen that will display a visual report about the possible target as four horizontal bars (gold – silver – iron – diamond), every bar will display an estimated percentage value that indicates the probability of target composition.

    gold star 3d scanner

    3 – Control Long-Range Locator [CTRL LRL]

    gold star 3d scanner



    CTRL LRL system is one of the new technologies and important features that have been integrated into Gold Star 3D Scanner, that enables the user to set the exact value of the search frequency in order to search for a specific type of metal or alloy of metals based on specific frequency value and thus ensure more accurate results when searching.

    In this system, user can set many search-related settings including:

    • Soil Type

    It is the type of soil of the ground in the scan field, can be set to one of the following types:
    Rock – Mixed – Neutral – Clay – Metallic – Sandy – Mineral – Chalky – Salty



    gold star 3d scanner



    • Frequency

    It is the custom frequency the user can set manually using this option.
    Values range in the 250-5000 MHz range, and can be set from predefined values like 250 – 500 – 750 …. 5000 MHz



    gold star 3d scanner



    • Distance

    It is the maximum distance between the user location and the target position during the scan process. It means that the user can search custom circular distance around himself and this distance starting from 0 to 3000 m and can be set like in previous systems.



    gold star 3d scanner



    • Depth

    It is the maximum depth of possible targets that the device can reach to find, its value can be set in 0 – 50 m range as explained previously.



    gold star 3d scanner



    After adjusting all of the previous settings the user moves to the scan screen and press the “Start Scan” button to begin the search process.
    The results screen will display a circular indicator, the direction arrow reflects the direction of antennas in degrees, on the right the inclination indicator that explained previously.

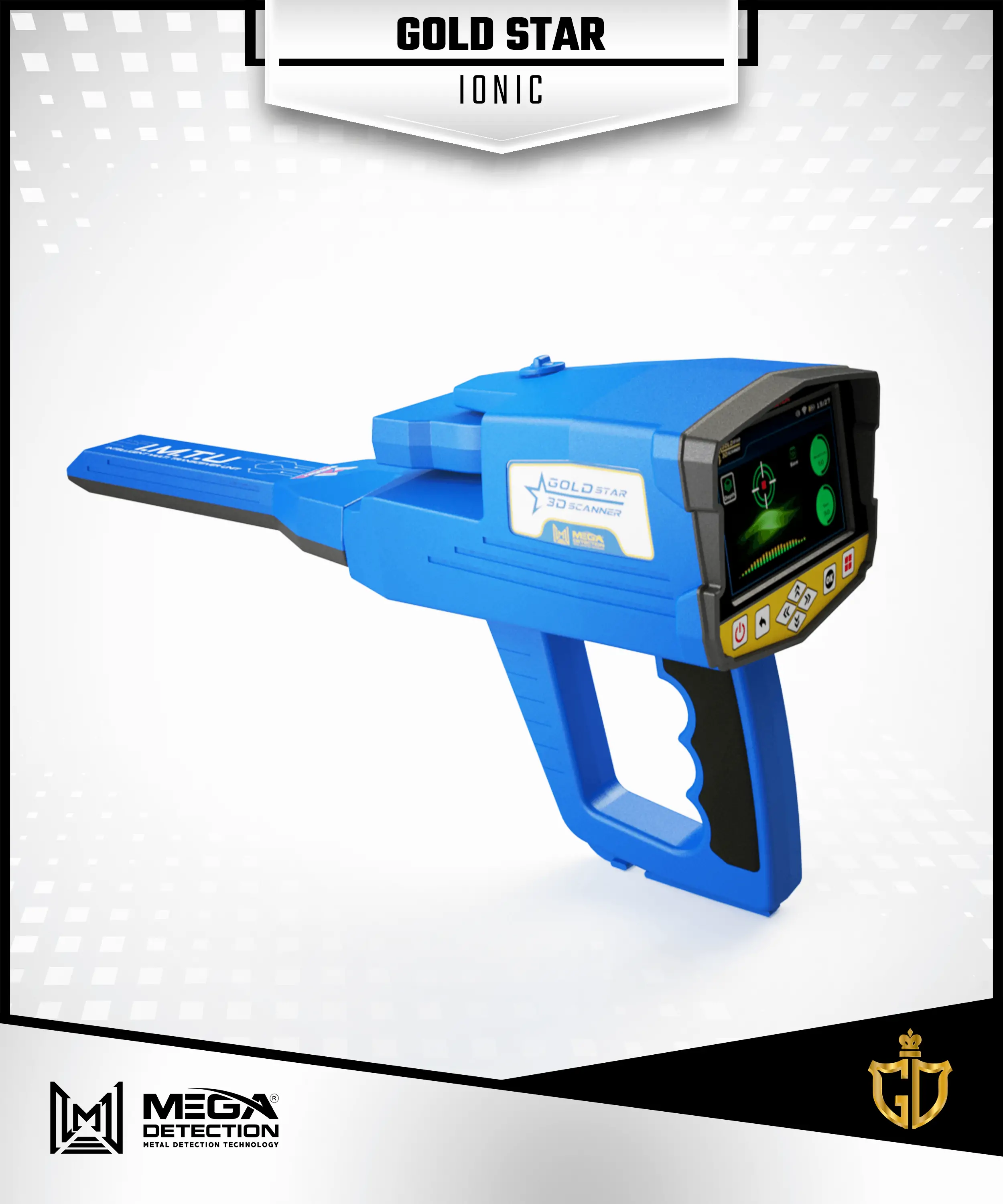

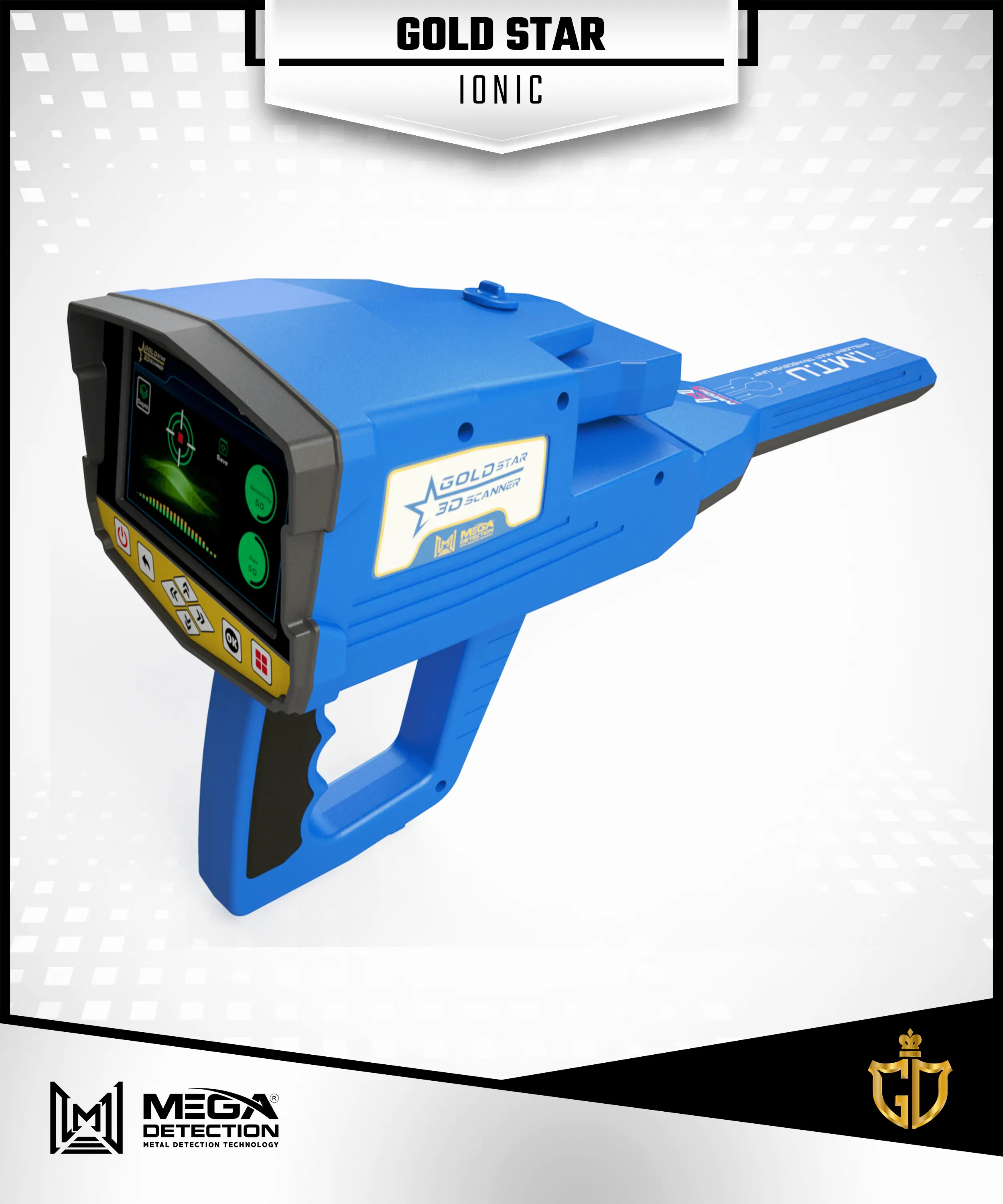

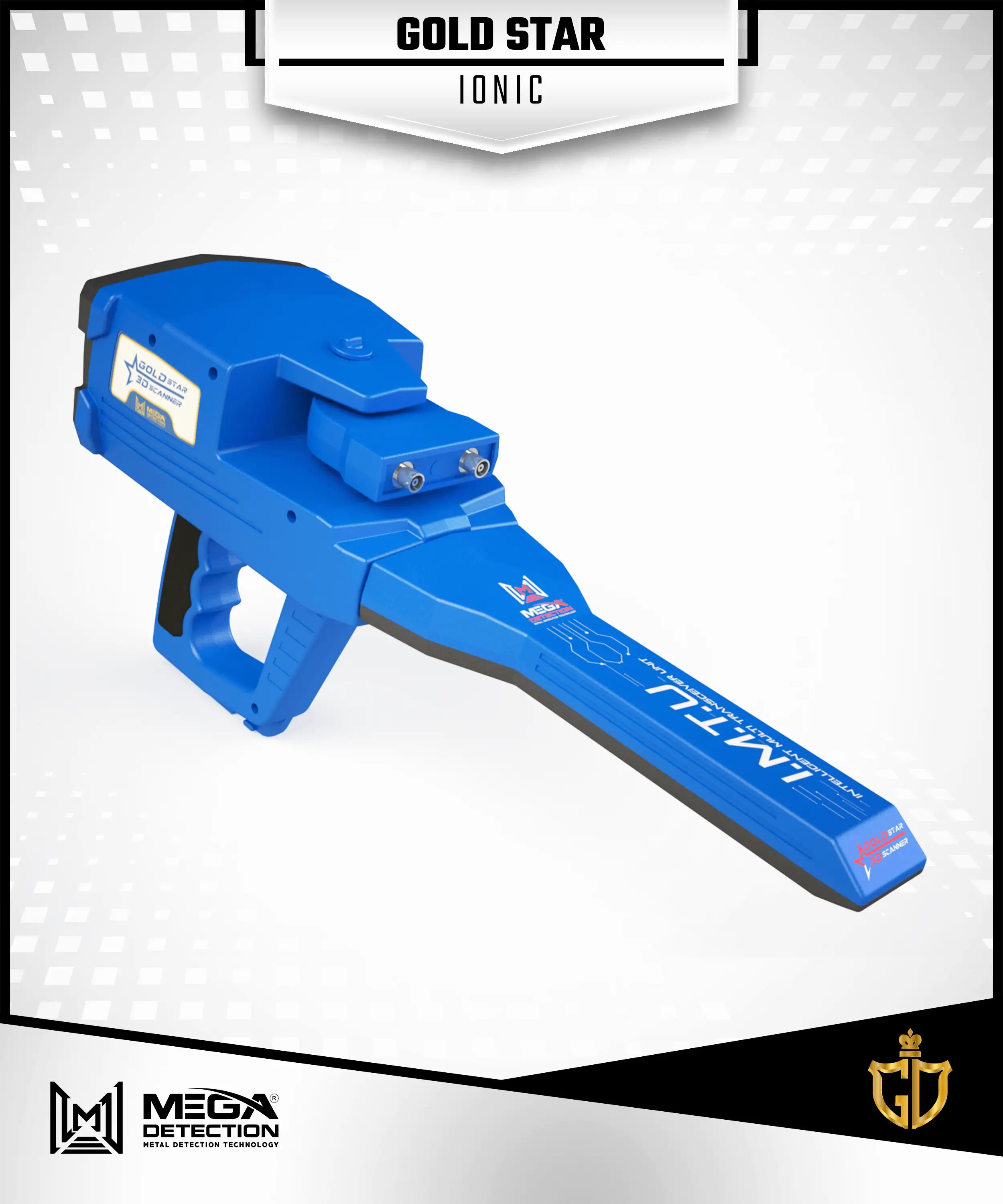

    4 – Ionic System [IONIC]

    The ionic system uses a newly developed technology incorporated into a new probe named Intelligent Multi Transceiver Unit or I.M.T.U.
    The I.M.T.U technology is the first of its kind in metal detectors, and it constitutes a major development from the traditional ionic fields detection system found in previous Mega Detection devices or competing devices.

    The new technology allows more accurate detection of ionic fields resulting from metallic targets buried under the ground thanks to I.M.T.U that ensures accurate receiving and processing of coming signals, with the ability to control some signal settings on the screen for more accurate results.



    gold star 3d scanner



    After selecting the ionic system, the device will start searching directly, here are the possible settings that can be adjusted by the user:

    • Sensitivity

    During the search process and according to the target scanning, the ionic system
    will generate a variable audio tone, which represents the targeting ability or the distance between the user and the target.
    The user can change the value of signal sensitivity to analyze the output sound, its value range is between 0 and 100, the selected value shown on the Sensitivity circular scale.



    gold star 3d scanner



    • Gain

    It is the signal gain or in other words signal strength, the user can control the signal strength using this setting, and it presented as a percentage value (0-100) on a circular scale-like sensitivity.

    Generally, it is recommended to reduce this value for detecting large-size targets, and increase gain value for small-size targets detection.



    gold star 3d scanner



    In the middle of the screen, there is a circular indicator, in the center of it there is a circle whose diameter and color change according to the received signal and the distance of the target from the location of the device, where it shrinks and expands with changing color to one of the following colors (red, blue or green) depending on the type of target.

    Based on the received signal, the device also makes an audio tone with pitch and strength related to the position of the target and the nature of the signal.

    5 – Bionic System [BIONIC]

    The bionic system is similar to the Ionic system in terms of how it is works and the use of an Intelligent Multi Transceiver Unit (I.M.T.U) to perform the scan process.
    But the difference is that here, ionic signals are captured from a particular metal object. for example, from a golden ring or coin, and then the search is directed towards capturing ionic signals similar to metal objects buried underground within the surrounding area.



    gold star 3d scanner

    That means in the ionic search system, the search is random and free, but in the bionic system, the search is directed according to predefined signals.

    After selecting the Bionic system and pointing the I.M.T.U to a specific target made of the metal that will be searched, the device will start a scan for ionic fields in direction of user movement and there are some options as in Ionic system can be adjusted:

    • Sensitivity

    The user can change the value of signal sensitivity to analyze the output sound, its value range is between 0 and 100, the selected value shown on the Sensitivity circular scale.



    gold star 3d scanner



    • Gain

    It is the signal gain or in other words signal strength, the user can control the signal strength using this setting, and it presented as a percentage value (0-100) on a circular scale-like sensitivity.



    gold star 3d scanner



    The previous values presented in the result screen as circular percentage indicators on right and left sides similar to indicators in the Ionic system.
    Here there is also a Signal Power or strength indicator displayed below presented as variable-length bars with variable colors and heights based on the received signal.

    In the center of the screen, there is a circular indicator whose movement and colors change according to the type of target, and the signal captured with three color possibilities, which are green, red, and blue, related to the type of target.

    Based on the received signal, the device also makes an audio tone with pitch and strength related to the position of the target and signal strength.

    6 – Live Stream System [LIVE STREAM]

    Live Stream is a system developed to detect various ferrous and non-ferrous metals
    in real-time, in form of live transmission with a visual representation of the received signal as a specific color stream that reflects the type of the target.



    gold star 3d scanner



    For example precious metal like gold or bronze – ferrous metal like iron – cavities such as tunnel.
    The process of measuring signals or scanning process is carried out by a Vertical High Signal Transceiver (V.S.T) probe, which is a specially developed probe, at the end of it there is a quadrilateral cone on both sides of the cone there is a set of LEDs that change its colors according to the type of the target, for example, the LEDs will emit a red light if the targets is a golden object or blue if it is a tunnel.



    gold star 3d scanner



    gold star 3d scanner



    The signals captured by V.S.T after calibration represented on the device screen as a continuous color stream that changes its color according to the type of possible target, similarly, the color is Red when capturing a precious metal signal and green for normal ground, a numeric value related to the target displayed on the screen beside the color stream.
    In conjunction with the color indicator, the device will generate audio tones based on the target type whose signal is captured.



    gold star 3d scanner

    Also, the user can see a visual representation of the signals on the bundled tablet that came with the device within the Mega Detection Multi Visual Analyzer app that displays the signal scheme in a graph, and the color of the graph will change in a similar way depending on the nature of the signal, in other words, the type of metal or target.

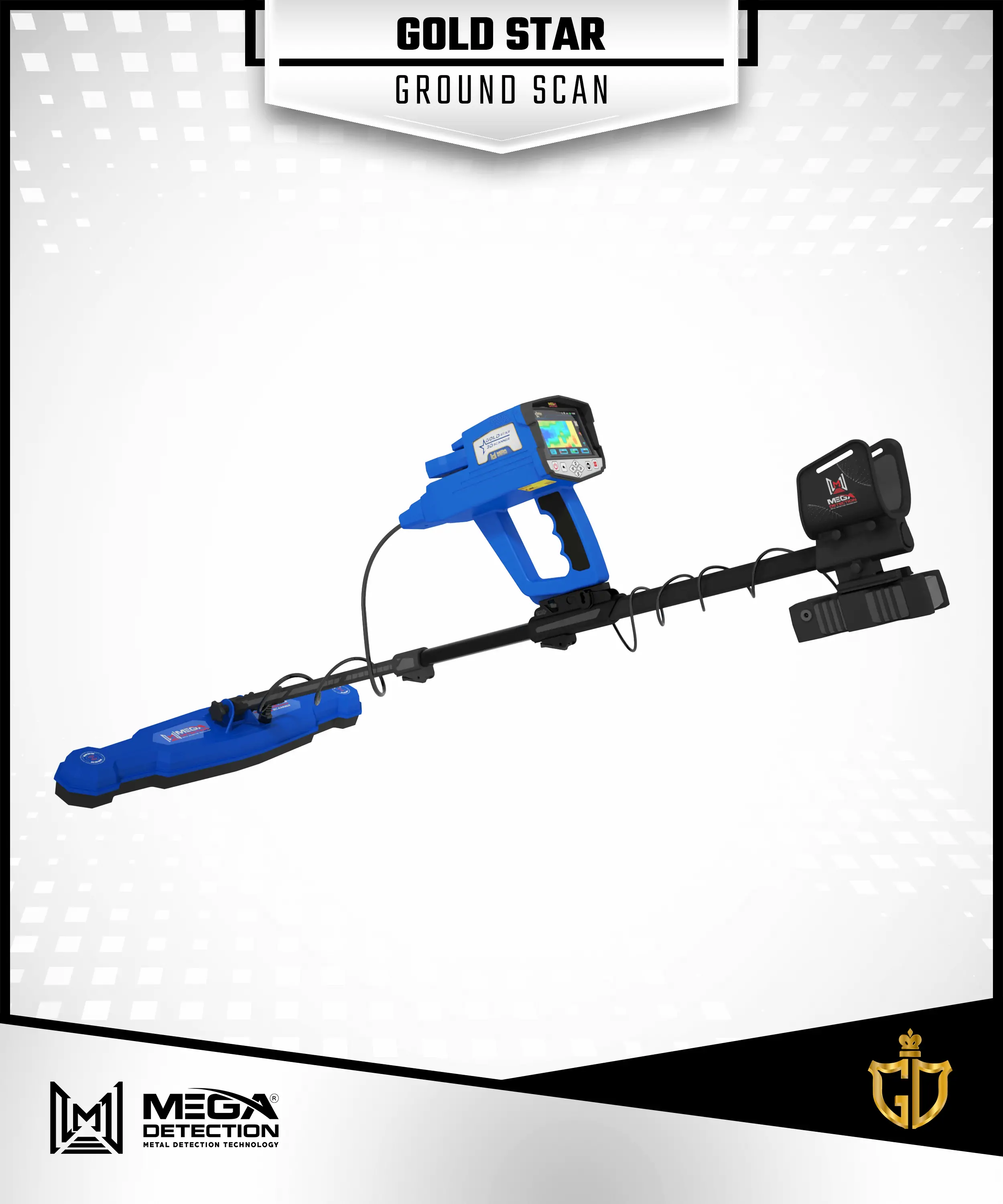

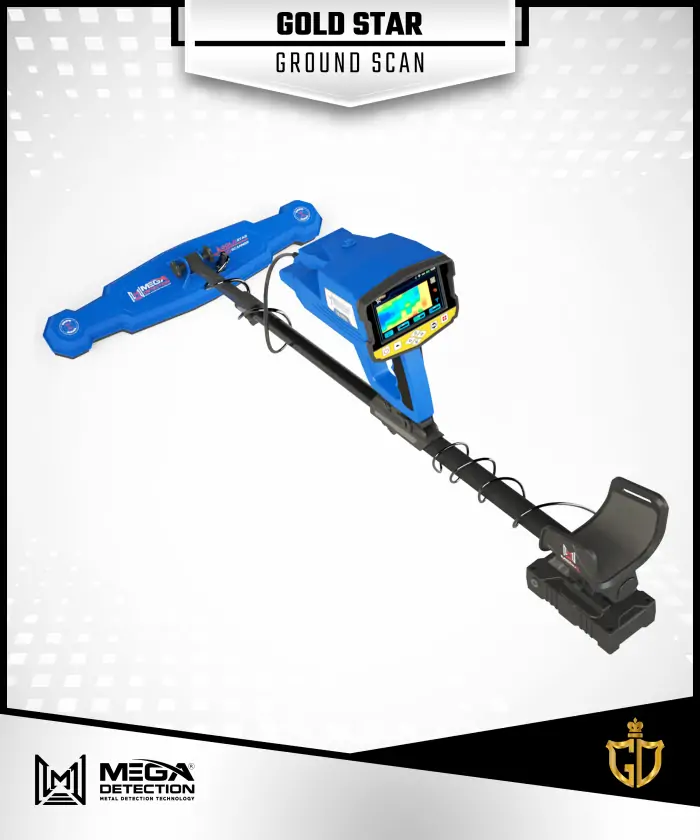

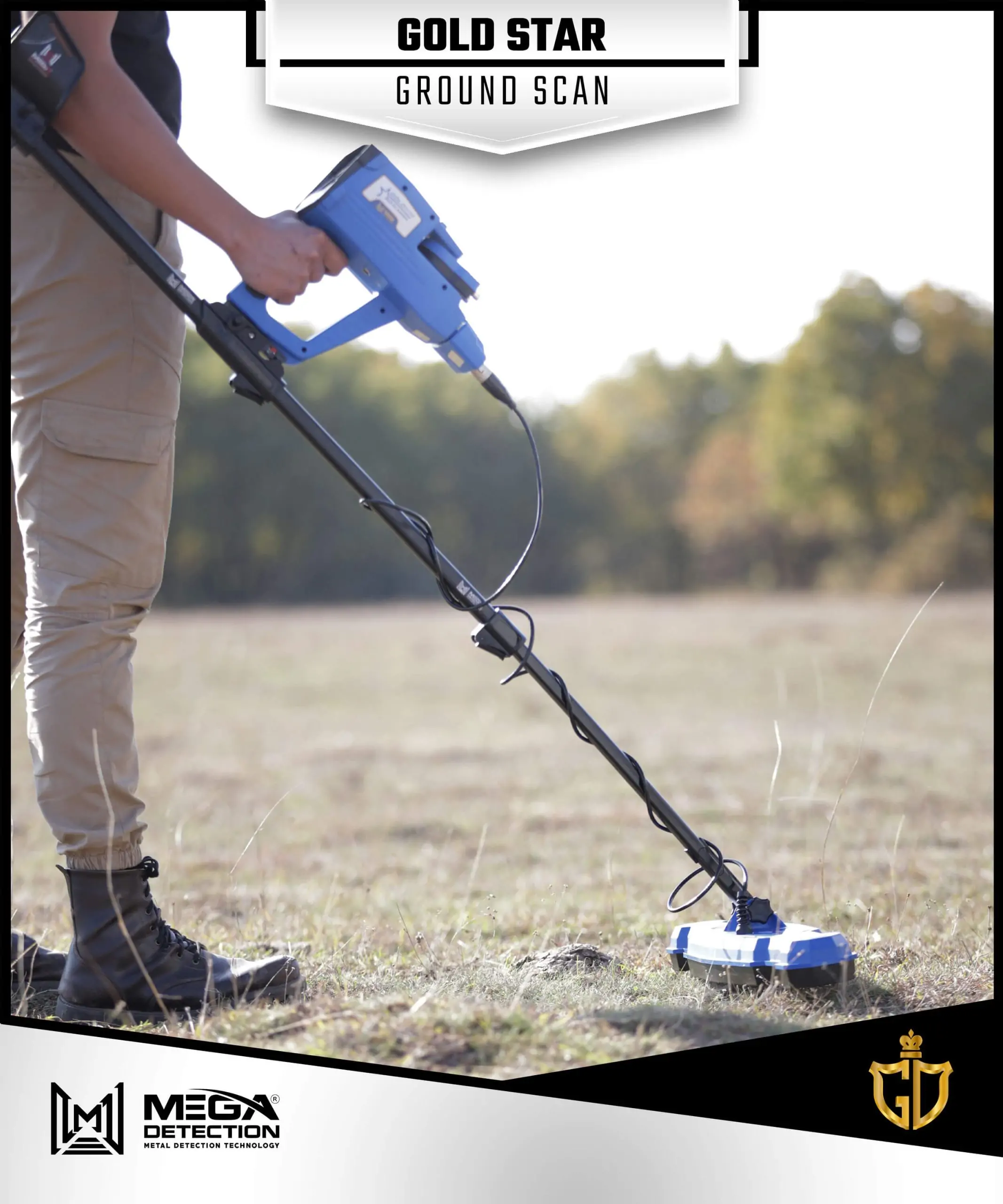

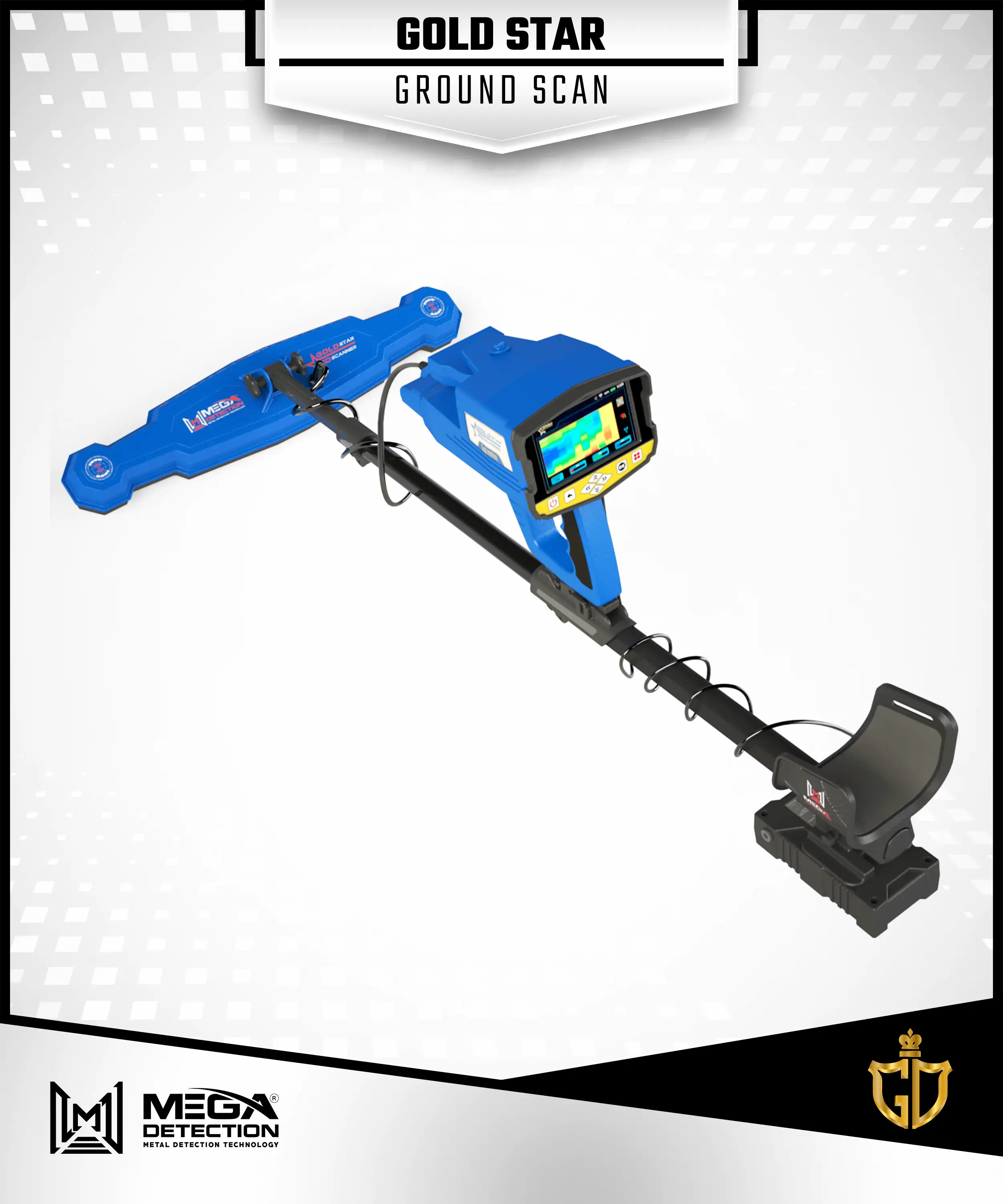

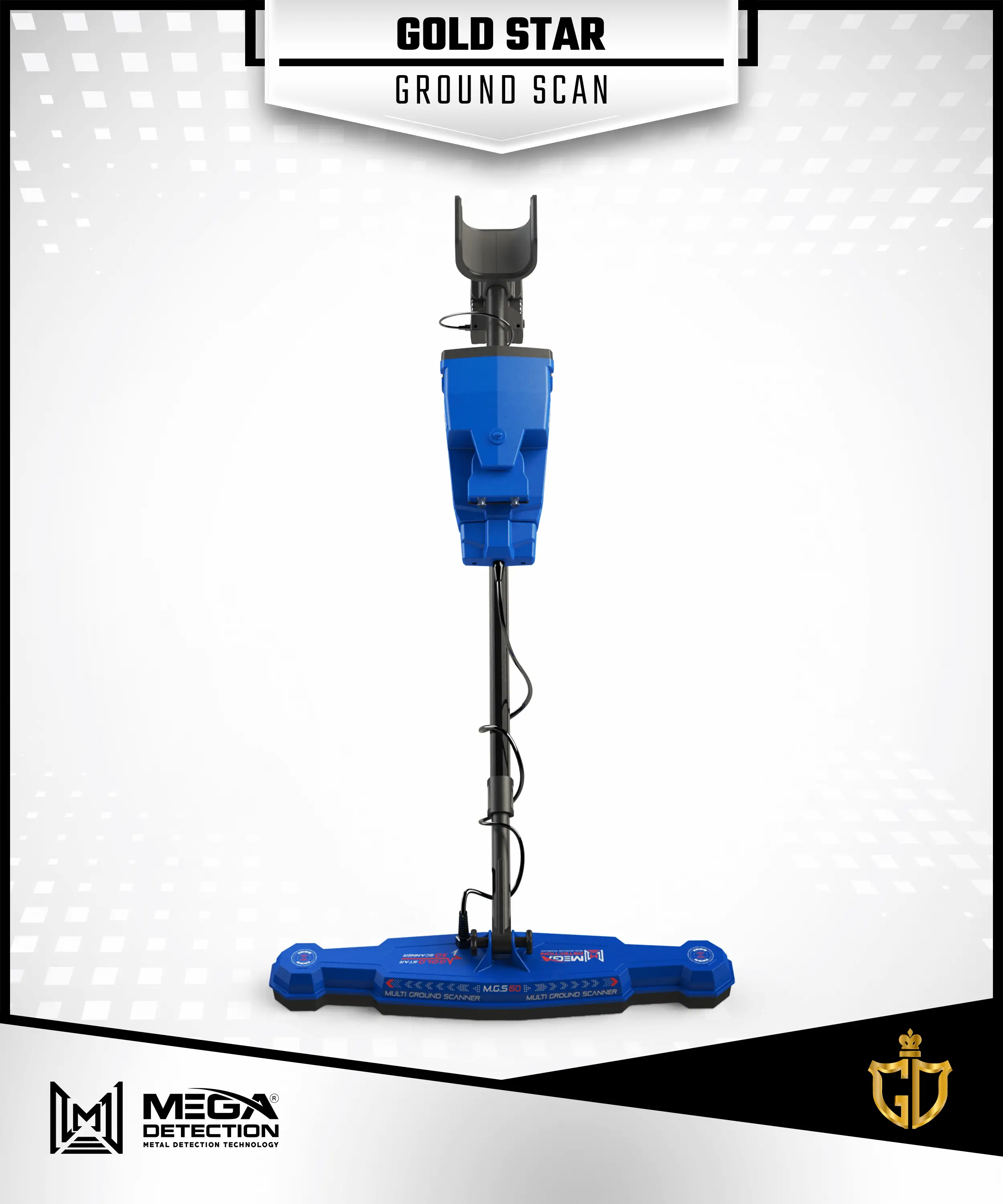

    7 – 3D Ground Scan System [GROUND SCAN]

    This powerful search system is a new system with completely new technology designed and developed especially for Mega Detection devices with the latest technologies in 3D ground scanning technologies.

    This 3D ground scan technology uses a new powerful and unique probe called Multi-Ground Scanner (M.G.S) with four built-in sensors and a large surface area offering more coverage of ground during the scan and reduces the time and effort of scanning large areas quickly with more accurate results.

    3D Ground Scan system helps the user to scan the ground and create a visual representation on both the device screen or bundled tablet. this system can make searching and find burials and artifacts and even cavities under the ground easy to the user with greater speed and more accuracy.

    The settings that can be adjusted on the device screen:

    • Result Display

    The user can select one of two options:

    1. Device: in this case, scan results will be presented visually on the device screen
    2. Tablet: the scan results will be presented visually on a bundled tablet screen using the Multi Visual Analyzer app.



    • Mode

    It is the method of performing the scan procedure and can be set to:

    1. Manual: here the user will record the measurement of signals in every scan point manually.
    2. Automatic: in this case, the device will record the measurements of every scan point automatically.



    gold star 3d scanner



    • Path

    Path value present how the user will move in search is to complete the scan process and there are two options:

    1. One Direction: in a one-direction scan the user will move and record the measurements at every point in a scan line and at end of every line, he will return to near the start of the previous line but with offset distance to start scanning another line and so on. That means the direction of the scan will be in one direction on every line or all scan lines will be parallel to each other.
    2. Zig Zag: in this case, the start point of the next search line is near the endpoint of the previous line, or in other words, the direction of movement will be opposite for each consecutive line.



    gold star 3d scanner



    • Size

    Here user can set the following settings:

    1. Width: it presents the number of scan lines and can be set to the desired value using arrow controls in the control panel.
    2. Height: it is the number of points in every scan line or scan points, it can be set like the previous value.



    gold star 3d scanner



    • Start Point

    Users can set the point in the search area (the rectangular area that includes scan lines and points) where the scan procedure will begin.

    1. Left: in this case, the scan process begins from the bottom – left corner of the search area
    2. Right: the scan process will begin from the bottom – right corner of the search area



    gold star 3d scanner



    After settings of all previous settings, the Scan tab will display a summary of previously selected settings and the user can press OK on the device control panel to start the scan process.



    gold star 3d scanner



    During the scan process, the measurement in every scan point will be presented visually on-screen on a 2D grid consisting of a number of rows (scan points) and columns (scan lines) of cells and every cell presented in a specific color that reflects the structure of the related ground area.



    gold star 3d scanner



    The table below shows the type of ground related to each color:

    Green Light Blue Blue Yellow Red
    Normal Ground Small Cavity Cavity metal objects gold



    On the right side of the 2D grid there are many values presented:

    current x (current scan line number) – current y (current scan point) – search value



    gold star 3d scanner



    After completing the scan in every scan line and point, the scan data can be saved as a file to the device memory for later analysis.

    In case the user chooses to complete the scan via the tablet, the same settings are set within the Multi Visual Analyzer app installed on the tablet, and the scanning is performed by the device in the same way, and the results are displayed directly inside the app in the form of a three-dimensional graphics based on the structure of the scanned ground and what it contains different target types that presented in different colors like in the previous table.

    Multi Visual Analyzer app gives the user a more accurate possibility to illustrate and know the buried targets, their type, depth, and exact position within the scanned area via its powerful analysis tools.

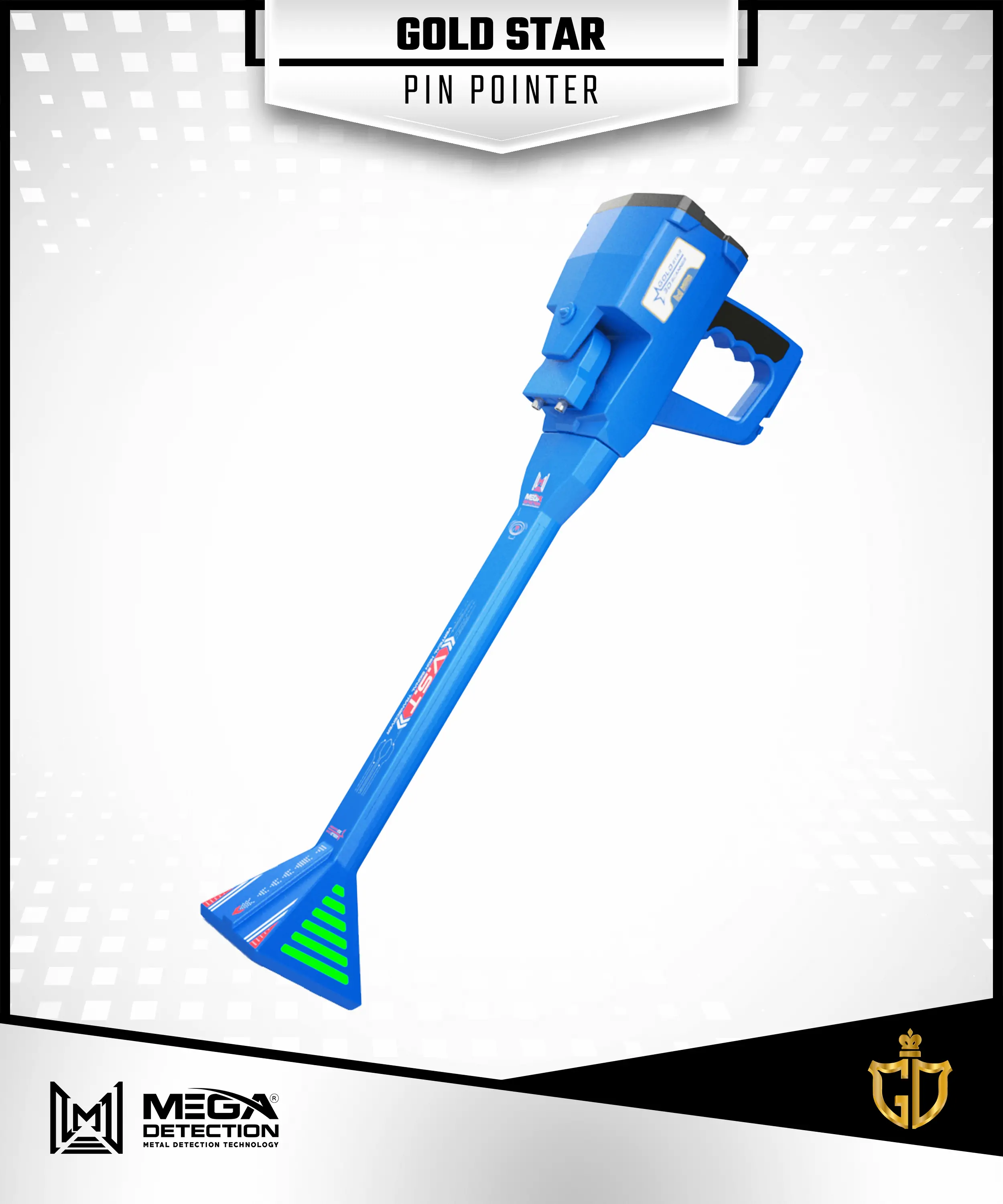

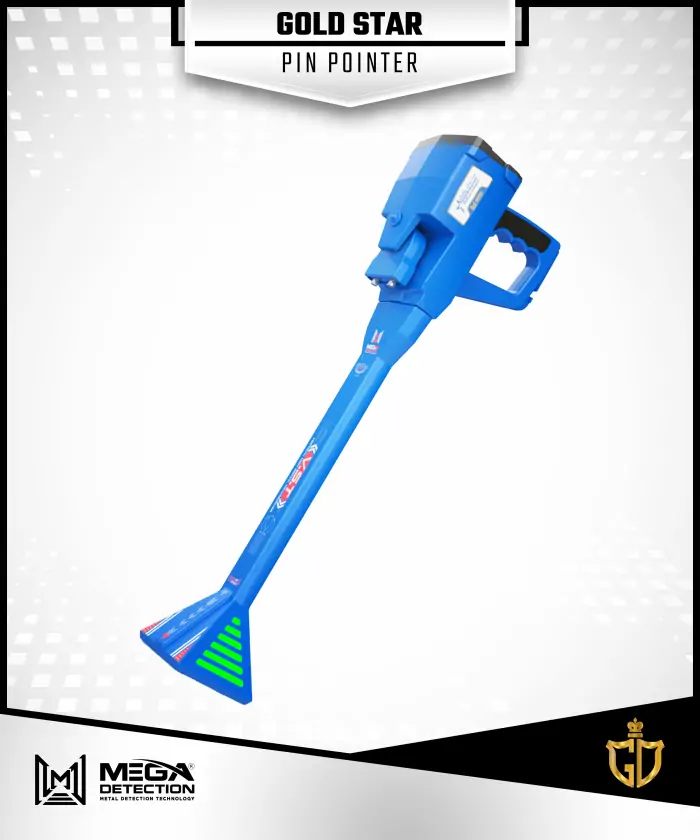

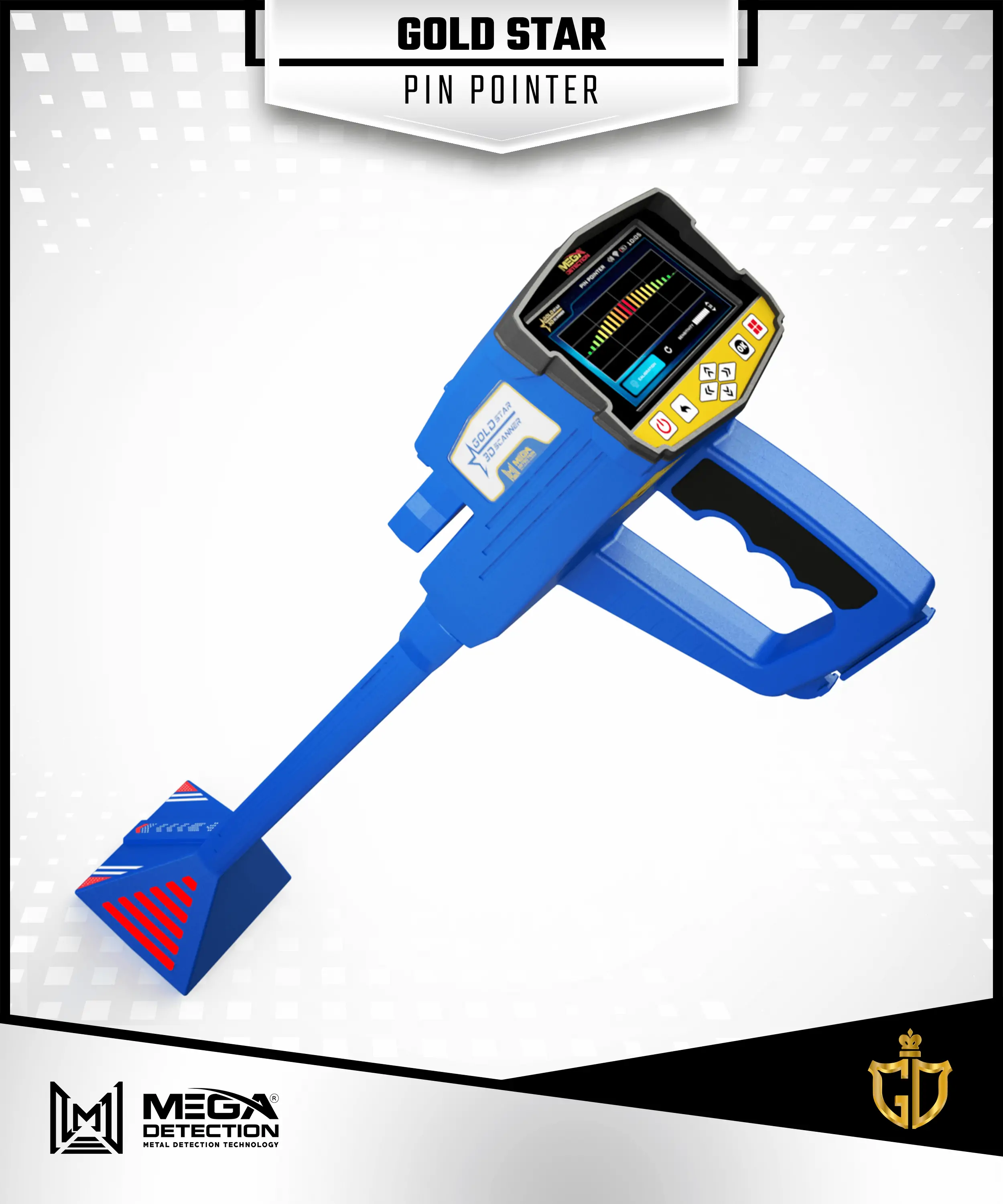

    8 – Pin Pointer System [PINPOINTER]

    gold star 3d scanner



    This system is used to determine the presence of a metal target or cavity with the precise location in which the buried metal or cavity is located via an audio or visual feedback presented on the screen, the process of scanning for possible targets is performed via the V.S.T probe.



    gold star 3d scanner



    In the result screen of this system there are many options:

    • Sensitivity

    During the search process and according to the target scanning, the pinpointer system will make a special scan sound with a specific tone and the visual graph on the screen presents the target presence under the ground.

    The user can change the value of sensitivity at any time to be able to analyze the output

    sound and the accompanying graph.

    The value can be set in the 0 – 10 range.

    gold star 3d scanner

    • Calibration

    Users can use this option to calibrate the sensor sensitivity at any time according to the ground type and terrain.



    gold star 3d scanner

    • Reset

    Reset the calibration process to the default value.



    The visual representation of received signals on the device screen is a curved bar graph based on the type of the target.

    For example, in the case of receiving metal signals the bar graph will be consisted of rectangles facing upward, of different lengths, with graded colors from green to red in the center at the maximum values, and then graded towards the green with low values.



    gold star 3d scannergold star 3d scanner



    In the case of receiving cavity signals – such as a tunnel – it will be made of rectangles facing downwards, of different lengths, ranging from green to dark blue in the middle at the maximum values, and then graded towards green at lower values.

  • Device program Functions

    Modern Software Program

    The user interface of the Gold Star 3D Scanner software program was designed according to the latest modern software technologies in the field of interface design according to an attractive modern design with a consistent color system and graphic icons that express the search systems, options, and settings of the device in an easily understandable way for the novice or professional user alike.

    The design of the screens and controls has been taken into account the best guidelines of user experience that provide the user with the best possible, flexible, and easy use of the device while providing ease of control to adjust the different values and settings related to the various search systems available in the device.

    Search Systems Screen

    It allows the user to choose the search system by selecting the search system icon from the list via the buttons on the control panel

    Users can choose between 8 different search systems, which were previously explained in detail.

    Language Select Screen

    In order to provide a Gold Star 3D Scanner for all prospectors around the world, the device’s program and interfaces are available in different international languages, including the most important languages in the world.

    The user interface language can be easily changed within the device’s settings and users can choose from 12 international languages to cover most countries of the world.

    Supported languages:

    1- German  2- English  3- French  4- Spanish  5- Russian  6- Italian  7- Arabic  8- Hebrew  9- Persian  10- Turkish  11- Urdu  12- Chinese

    Date & Time Settings

    One of the useful features for the user of the Gold Star 3D Scanner is the ability to set the date and time to match the real date and time, and the device keeps these values even if it is turned off.
    The device displays a digital clock that includes the current time and appears continuously at the top right of the screen to enable the user to know the time when he searching in the fields, especially with the knowledge that when searching, the user should not carry metal objects such as a wristwatch or a mobile phone because they affect the capture of magnetic signals.
    The importance of the possibility of the date and time subject is also evident when saving the search files or the values of the ground scanning process, as they are automatically saved with a name that includes the date of the day and the time at which the file was saved, and this guarantees the user the ability to return and analyze the search process that was conducted in a specific place on a specific date.

    Screen Settings

    In this screen user can control some useful settings related to the device’s screen, namely:

    • Energy Saving Mode

    In the case of activating it, the value of the time that the device needs to turn off the screen can be set (in the event that no button is pressed for a while), and this ensures that the battery power is saved for longer use.

    • Screen Brightness

    The screen brightness value can be controlled within a specific value to suit the user’s conditions in terms of time during the day or night and weather conditions like on foggy or rainy days.

    This option can be useful to save battery power when it is set to low values.

    Audio Settings

    The device features various audio alerts depending on the search system used.

    Within the device’s settings, you can adjust the volume of the sound and various alerts:

    • General sound: It controls the general volume of the device sound (speaker sound volume).
    • Keypad sound: to adjust the sound volume of control panel buttons
    • Scan sound: adjust the sound volume of sound issued when conducting the ground scan via the scanning tools

    Power

    Use this option to save the power and energy of the battery during device usage.
    By using this option, the battery lifetime will be extent 50% at least ant it depends on the type of searching system and type of connected sensor

    Scan Files

    When performing scans, the user can save the current values of the scanning operation to files stored in the device’s memory.
    The user can, through a simple interface, review all previously saved files and open them to view the stored results, or a previously stored file can be deleted to save space in memory for future searches.

    Reset

    Here the user can set the following options

    • Reset Settings: reset general settings without deleting previously saved scan files.
    • Factory Settings: reset to the factory values (the values when purchasing the device from the factory) while deleting the saved files
    • Clear Memory: clean memory to free up the device’s memory of all saved files.

    Device information

    This screen displays the device information, which are:

    • Device Version
    • Software version
    • Device Model
    • Serial Number
    • Manufacturer Country
    • QR code: the user can read it to obtain useful informant about the device, including the manufacturer website

    Security settings

    • Pin Lock: activate or deactivate the screen lock
    • Set Pin: here user can set a pin number (a number that without entering it correctly any person can’t access and enter the device software program)

System Box (Main Unit)

Intelligent Multiple Transceiver Unit: (I.M.T.U)

Multi Ground Scanner (MG.S60)

Vertical high signal transmitter: (V.S.T)

MGS connector

IMTU and V.S.T connector

Armrest and column

Long-range antennas

Li-ion battery

headphones

Hardware box (bolts – nuts – battery charger – cables …)

Tablet

Click Here To View Catalogue

Additional information

Depth

Made In

Manufacture

Warranty

3 reviews for Gold Star 3D Scanner

  1. 5 out of 5

    ayman

    insane performance ..alhamdulellah

  2. 5 out of 5

    Jamison

    I am a very happy, very professional service

  3. 5 out of 5

    Addison

    Very fast delivery and customer service was great


Add a review

You've just added this product to the cart:

Open chat
