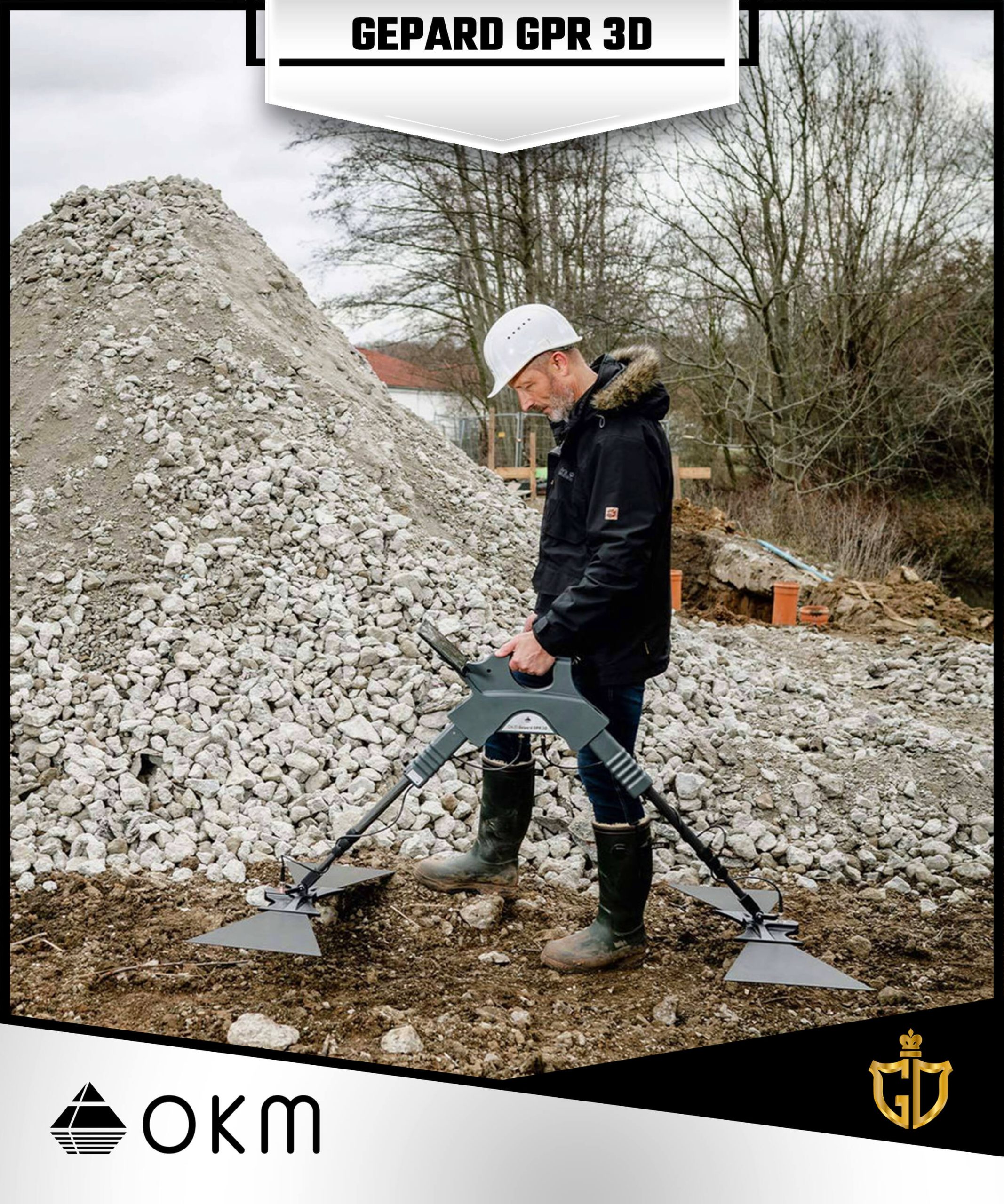

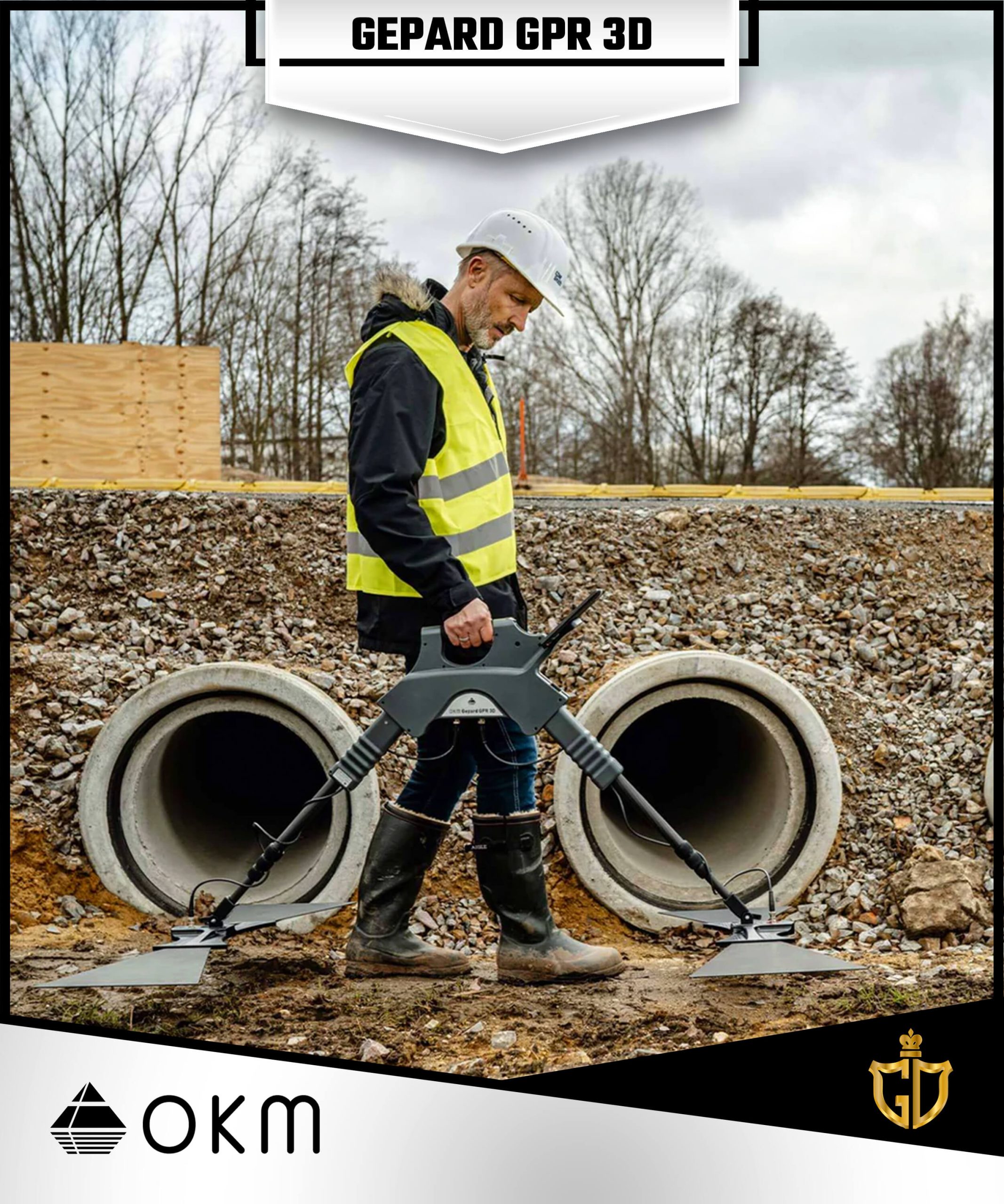

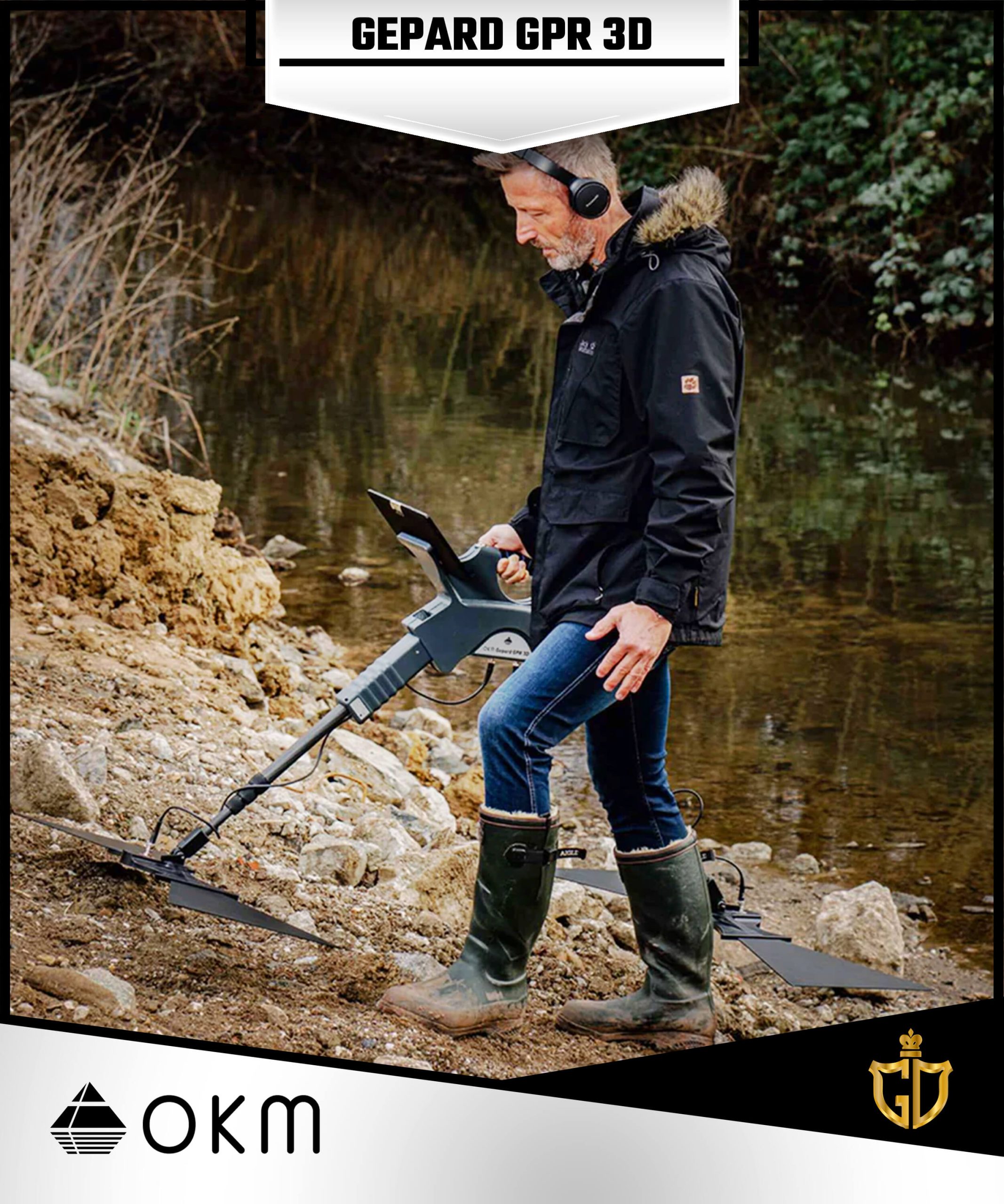

Gepard GPR metal detector is a very flexible, transportable, and powerful ground penetrating radar for detecting underground items like pipelines, cavities, cables, conduits, tunnels, bunkers, foundations, and the like? The Gepard ground penetrating radar uses an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters deep. This light, agile and compact unit can be easily operated by a single operator.
Gepard GPR Device
Device Features
Gepard GPR metal detector is a very flexible, transportable, and ground-penetrating radar for detecting underground elements such as pipes, cavities, cables, ducts, tunnels, bunkers, foundations.
OKM Gepard GPR metal detector Ground Penetrating Radar uses an unshielded omnidirectional transmission system to reach maximum depths of up to 40 meters. This lightweight, agile, and compact unit can be easily operated by a single operator.
The RADAR (Detection and Radio Range) sends a signal to the ground and receives the signal to detect anomalies on the surface, such as the following:
Underground walls, basements, and concrete reinforcements.
Hidden cavities, graves, and sepulchers.
Water level and underground rivers and aquifers.
Buried pipes, conduits, and cable harnesses.
Stuffed wells, galleries, ditches, and huts.
Septic tanks, distribution boxes, and drainage pipes.
Secret tunnels, bunkers, and shelters.
Buried treasure chests, statues, and hiding places.
Gepard ground penetrating radar uses multiple transmission frequency ranges starting at 60 MHz up to 300 MHz by adjustable telescopic antennas. In addition, it supports automatic adjustments to optimize your field surveys on specific soil types.
The measured ground-penetrating radar data is transferred directly to an Android tablet. The Android software receives the data via Bluetooth and displays it immediately on the screen.
The software has the ability to integrate a signal with Google Maps, automatic filtering, and note input for later recall of specific scan details. In addition, automatic filtering capabilities are useful for improving your scan results and finding hidden objects and structures more easily. Due to the integrated GPS, all scan positions can be stored together with the scan data.
Android software applications are available in the following languages:
EnglishFrançais, Deutsch, Español, λληνικά, Italiano, فارسی.
Optional accessories for the ground-penetrating radar “Gepard GPR”
OKM Power Pack: instead of using AAA batteries, you can also use the PowerPack to operate the “Gepard GPR” ground-penetrating radar. That way, you can operate your ground radar for up to 10 hours at a time without changing the batteries every 3 hours.
Device program Functions
The radar (radio and resonance detector) sends electromagnetic signals in the range of 60 MHz to 300 MHz into the ground and waits for echo or reflection of the signal to detect the hidden following objects:
buried pipelines, channels, and cables
Underground walls, basements, and reinforced concrete
Rolling wells, exhibitions, trenches, and caches
Underground water levels, and rivers
Secretly hidden tunnels, caches, and shelters
Cavities, tombs, and tombs
Sewage tanks, distribution boxes, and sewage pipes
Buried treasures, statues, and caches
Gepard GPR Device

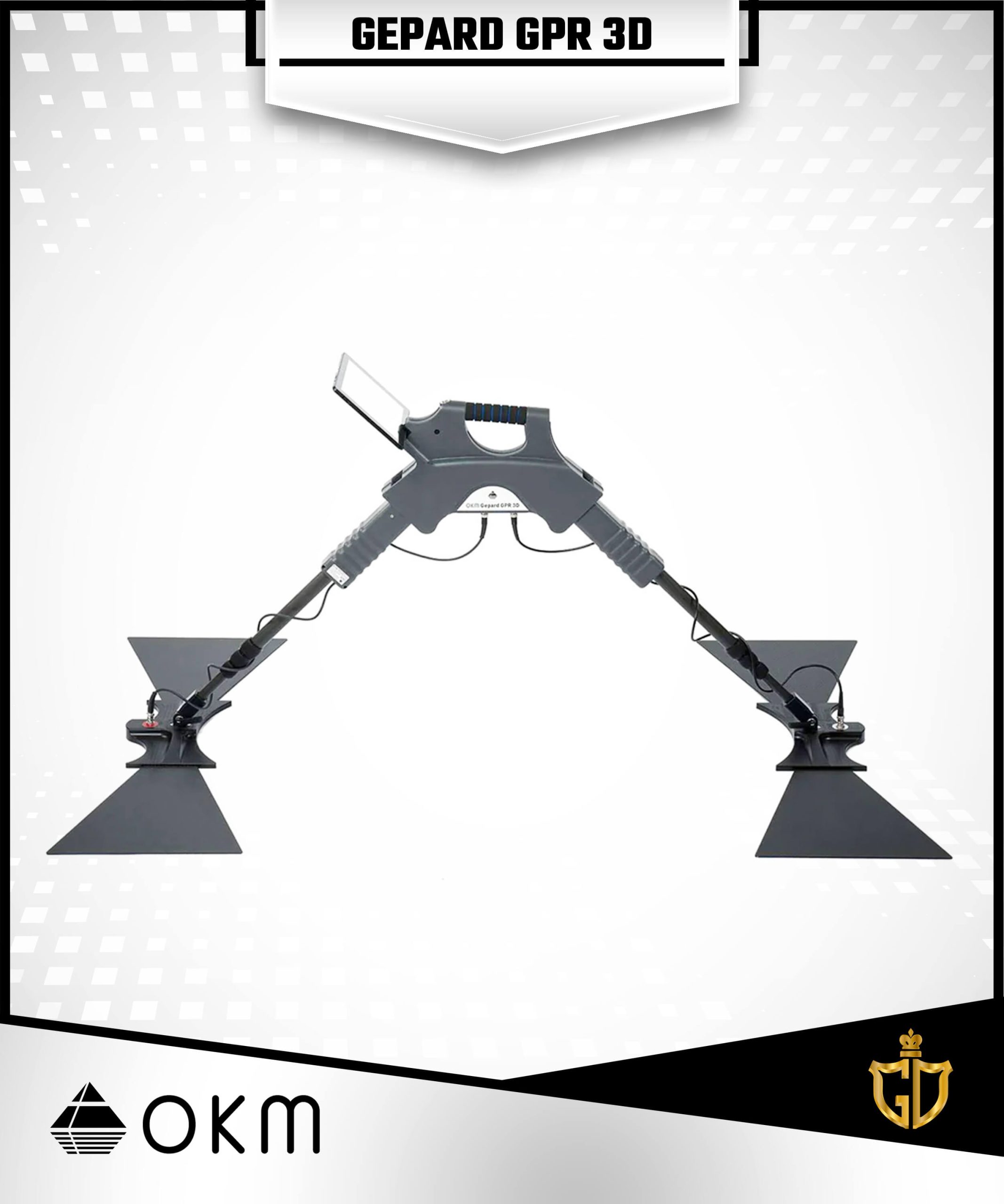

The Gepard GPR is a very flexible, transportable and powerful ground penetrating radar for detecting underground items like pipelines, cavities, cables, conduits, tunnels, bunkers, foundations and the like.
The Gepard ground penetrating radar uses an Omni-directional unshielded transmission system to reach maximum depths up to 40 meters deep. This light, agile and compact unit can be easily operated by a single operator.
Ground Penetrating Radar with Android Tablet PC
The RADAR (Radio Detection and Ranging) sends a signal into the ground and awaits the reflection or echo of the signal to detect sub-surface anomalies, like the following:
- Secret Tunnels, Bunkers and Shelters
- Hidden Cavities, Graves and Sepulchers
- Buried Treasure Chests, Statues, and Caches
- Buried Pipelines, Conduits, and Cable Harnesses
- Back-Filled Wells, Galleries, Trenches, and Dugouts
- Water Level and Underground Rivers and Aquifers
- Septic Tanks, Distribution Boxes, and Drainage Pipes
- Underground Walls, Basements, and Concrete Reinforcements

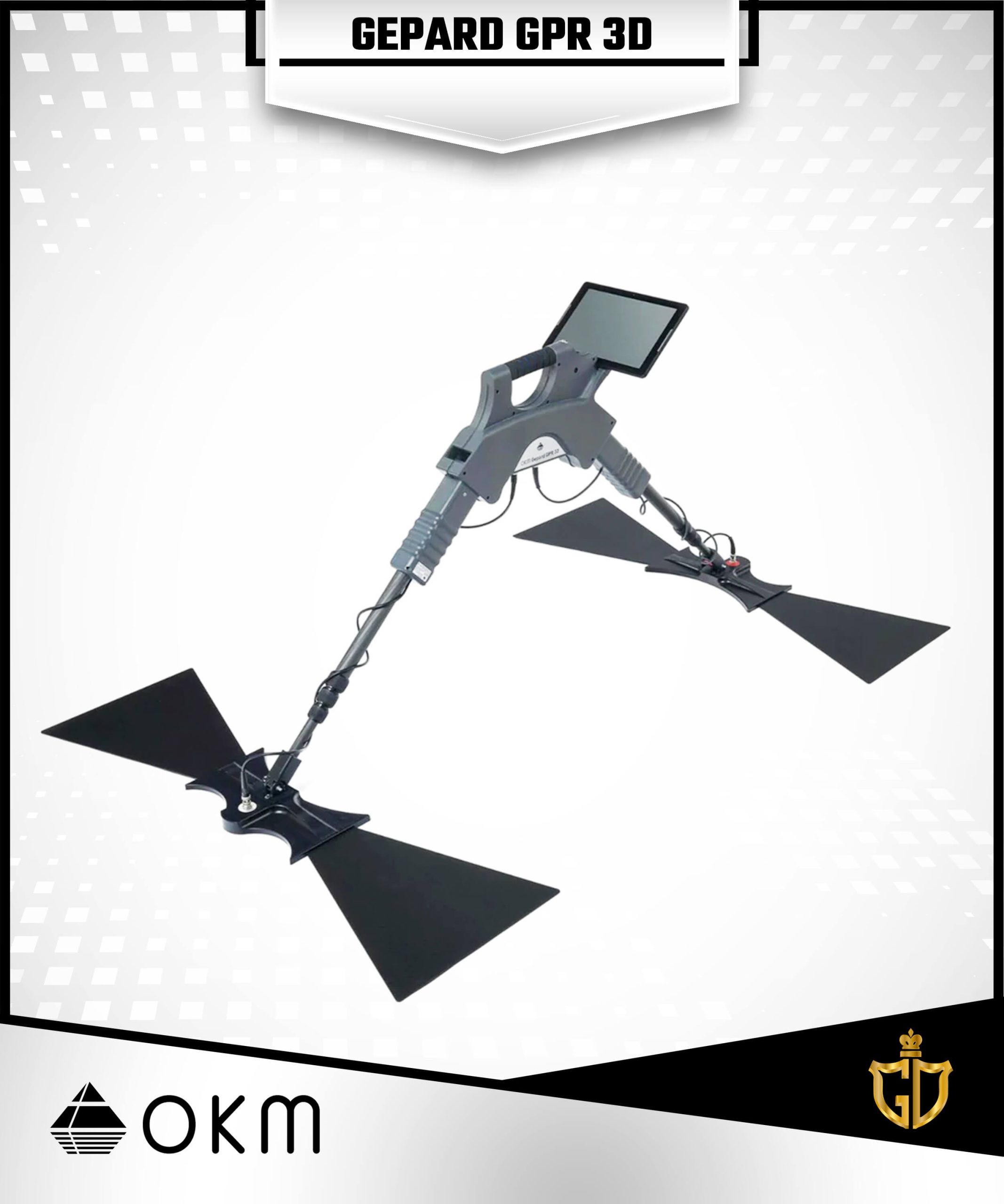

The Gepard ground penetrating radar is using a multiple transmission frequency range starting at 60 MHz up to 300 MHz which is realized by adjustable telescopic antennas. It furthermore supports many automatic adjustments to optimize your ground surveys on specific soil types, which makes the handling of the Gepard ground radar very easy. You just set your depth resolution and start surveying.

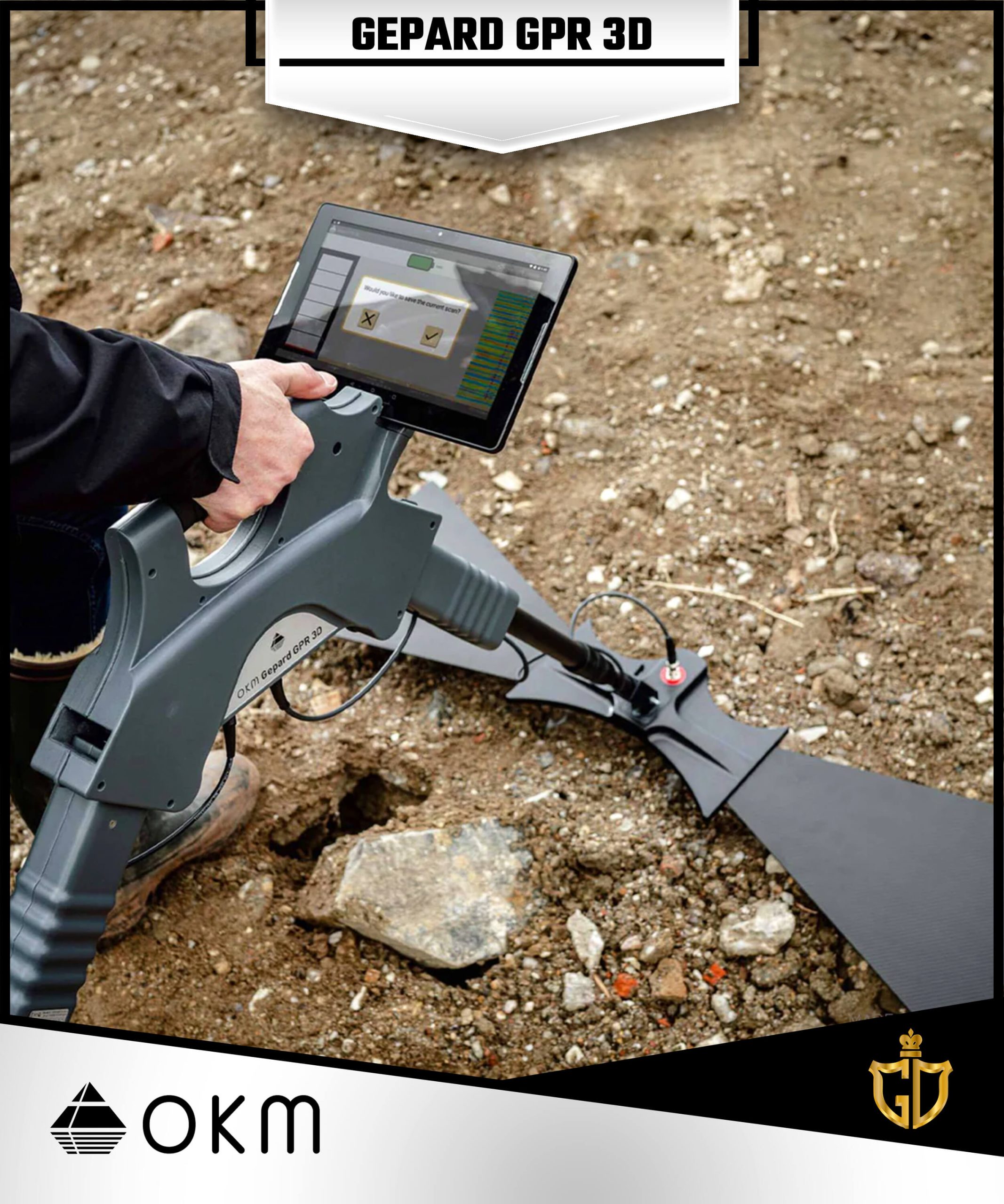

The measured data of the ground-penetrating radar is directly transferred to an Android Tablet PC. The Android software receives the data via Bluetooth and displays it immediately on screen.
The software has the capability of integrating a GPS signal, Google Maps, automatic filtering, and entering notes for later recollection of specific scan details. Additionally, automatic filtering capabilities are useful to improve the results of your scan and find hidden objects and structures more easily. Due to the integrated GPS, all scan positions can be stored along with the scan data.

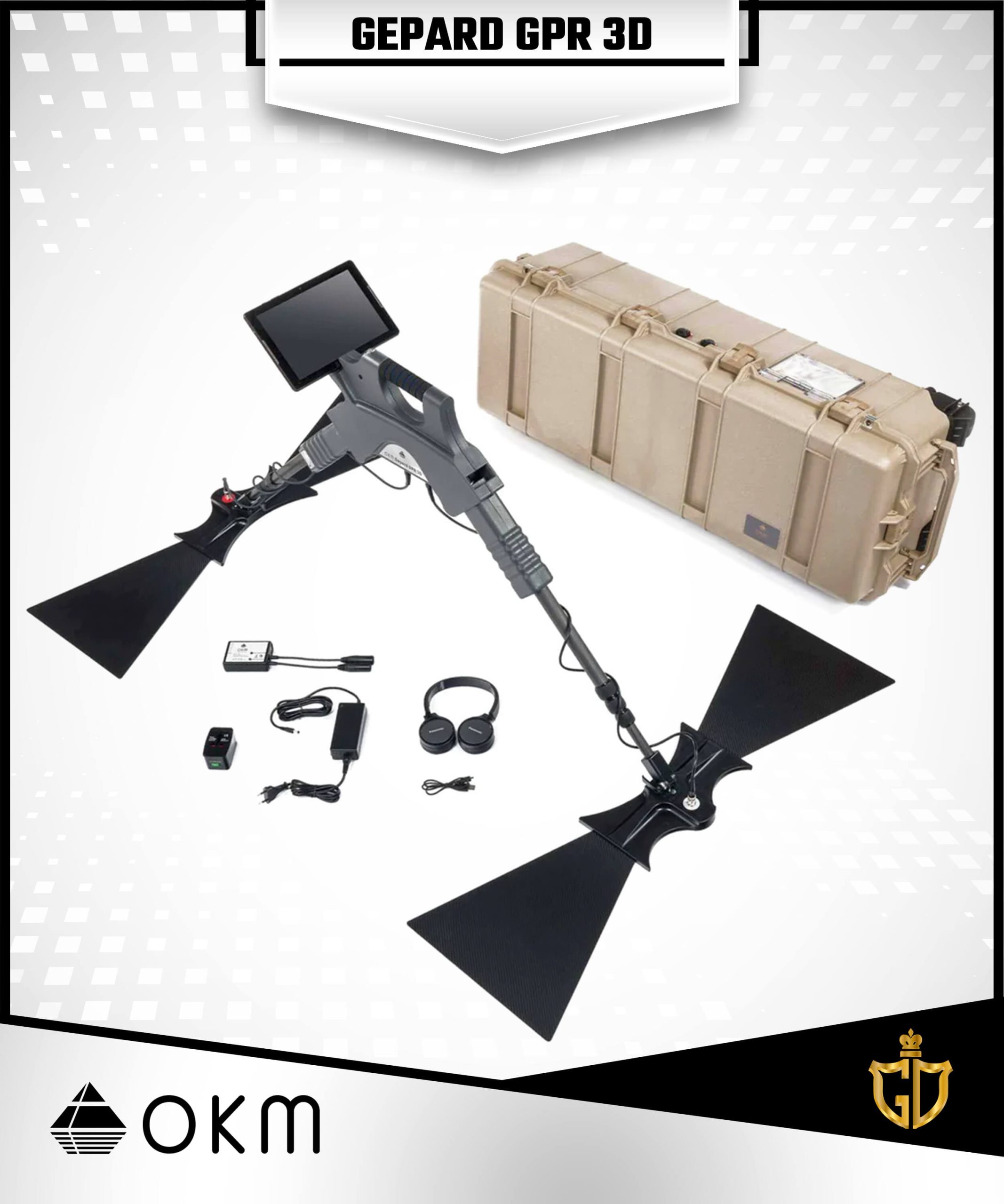

Optional Accessories:
60 MHz GPR Antenna: The extremely robust 60 MHz antenna allows geophysical measurements up to great depths. This optional GPR antenna penetrates much deeper than the 100 MHz antenna and is especially used to detect larger objects which are lying deeper under the ground surface.
100 MHz GPR Antenna: The 100 MHz antenna is not only robust and stable but also capable to perform high resolution measurements. In contrast to the 60 MHz antennae, the 100 MHz antenna is particularly good for finding small subsurface objects.
OKM Power Pack: Instead of using AAA batteries you are also able to use the Power Pack to operate the “Gepard GPR” ground-penetrating radar. In that way you can operate your ground radar up to 10 hours continuously without changing the batteries every 3 hours.
Technical Specifications:
- Control Unit
- Waterproof : No
- Indications : LED
- Weight : 3.7 lbs (1.7 kgs)
- Air Humidity : 5 % – 75 %
- Feedback : Audible, Visual
- Multi-Function Control : Yes
- Timing / Sampling : 16 Levels
- Complete Cycle : 9 per Second
- External Power Pack : Yes (Optional)
- Voltage : 9.6-13.2 VDC, 18 W Maximal
- Operating Time (AA Batteries) : Approx. 6 Hours
- Transmission Frequency Range : 60 MHz-300MHz
- Storage Temperature : -13 °F – 158 °F (-25 °C – 70 °C)
- Operating Temperature : -4 °F – 122 °F (-20 °C – 50 °C)
- Operating Time (OKM Power Pack) : Approx. 10 Hours
- Operating Time (Accumulator Batteries) : Approx. 3 Hours
- Dimensions (H x W x D) : 13″ x 7″ x 2″ (350 x 182 x 60 mm)
- Data Transmission (Bluetooth)
- Technology : Bluetooth
- Max Transfer Rate : 1 Mbps
- Receiving Sensitivity : -85 dBm
- Max Range : Approx. 32′ (10 m)
- Frequency : 60 MHz up to 300 MHz
Features:
- Flexible and Transportable
- Reaches Depths up to 131′ Deep (40 m)
- Detects Underground Items like Pipelines, Cables. etc.
- Simple to Use – Just Set your Depth Resolution and Start Surveying
- Measured Data is Directly Transferred to an Android Tablet PC via Bluetooth
- Software is Capable of Integrating a GPS Signal, Google Maps, Automatic Filtering and Entering Notes for Later Recollection of Specific Scan Details
