Garrett ACE APEX

Garrett ace apex

Garrett ACE APEX

900 U.S

In stock

900 U.S

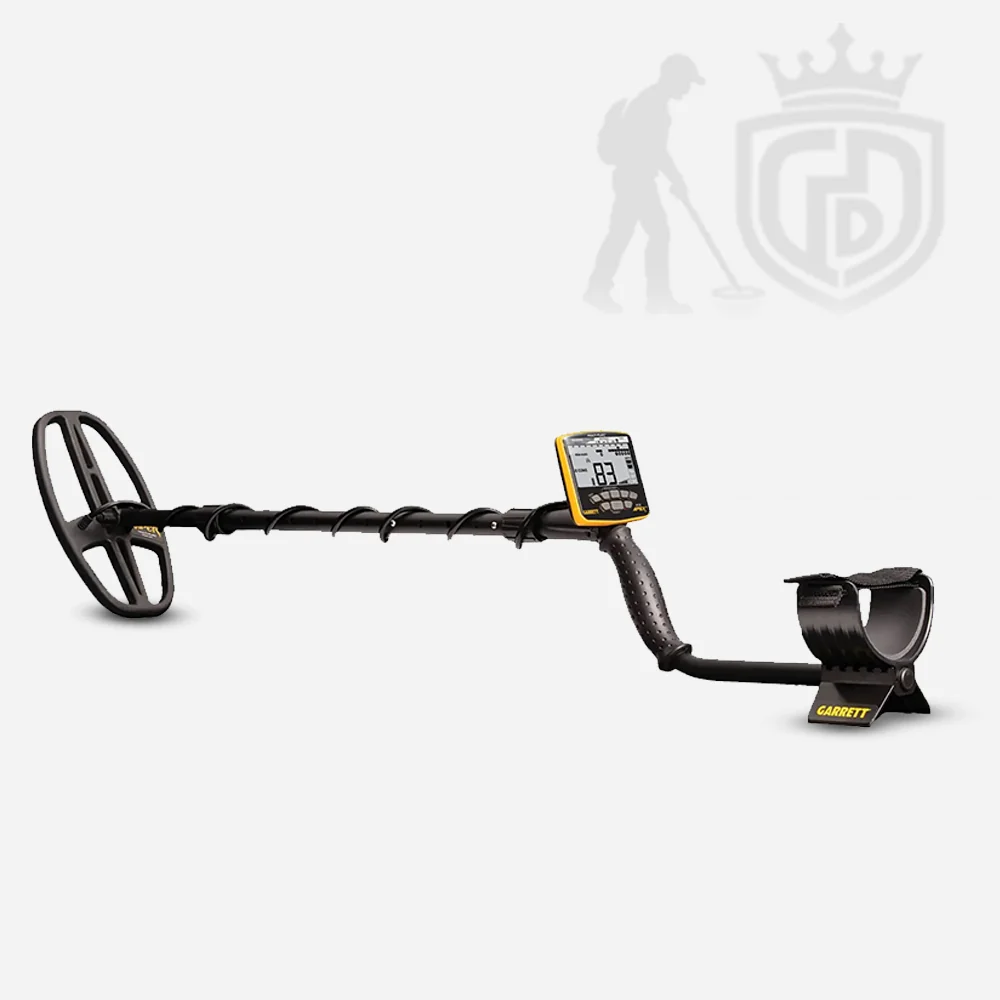

Garrett ace apex metal detector is a new innovative metal detector with new Garrett’s Multi-Flex technology a multi-frequency feature


Made In



Targets: for ancient or modern-made coins of silver or gold or bronze. Relic hunting for small metal objects

SKU: GER-GD-ESY-1-1-1 Brand:


  • Details

    Garrett Ace Apex is a new innovative metal detector with new Garrett’s Multi-Flex technology a multi-frequency feature introduced in Nokta Impact and Minelab Vanquish, but with the best performance and sensitivity.

    Multi-Flex technology gives the prospector a wide variety of detection applications for different types of ferrous or non-ferrous metals and the detection of buried objects of different sizes in all terrain and soil types.

    Garrett Ace Apex combines modern design with a large screen with excellent performance, excellent detection depth on a wide variety of targets, plus a fast target recovery speed and a variety of practical uses that suit all the needs of prospectors and treasure hunters.

    Garrett Ace Apex metal detector must be acquired by the prospector in order to discover precious objects and hidden gold at a competitive price.

  • Device Features

    Garrett Ace Apex Features

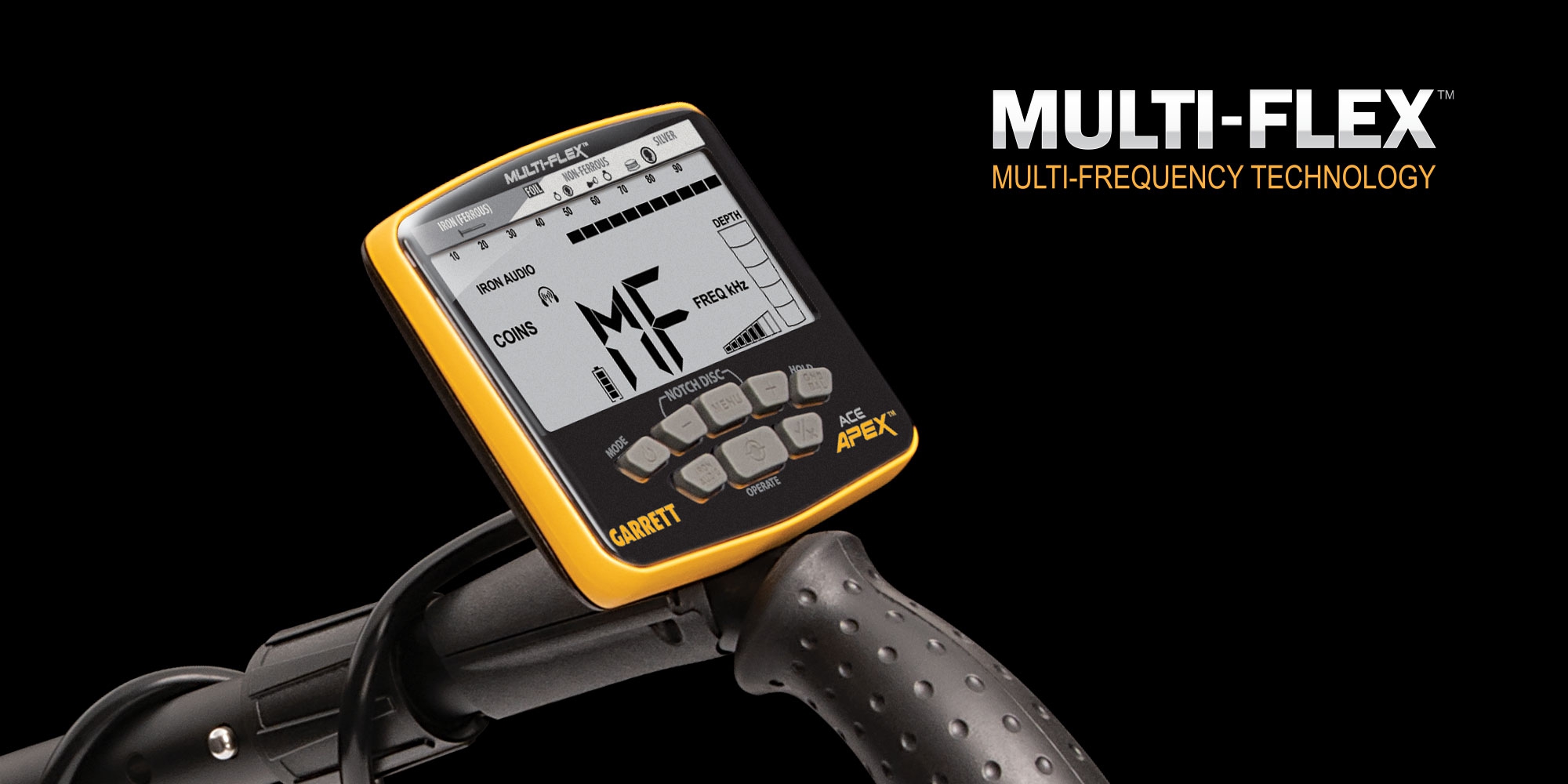

    Multi-Flex Technology

    This technology allows the user to choose a specific search frequency from among a set of preset frequencies in order to limit the search to a specific metal type or size.

    Or he can select one of Apex’s simultaneous multifrequency modes in order to cover all the targets and sizes at the same time to achieve the best performance and shorten the required time.

    As a general law: lower search frequencies generally offer improved detection on larger and more conductive targets (for example large silver coins).

    On the other hand, higher frequencies generally offer improved detection on smaller and less conductive targets (example: hammered silver coins, gold nuggets).

    Uses & Applications

    • Coin shooting for ancient or modern-made coins of silver or gold or bronze.
    • Relic hunting for small metal objects like ornaments and jewelry (rings – collars.)
    • Ferrous metal detection of iron or its alloys.
    • Detection of non-ferrous minerals like silver – platinum, and others.

    Garrett ace apex metal detector

    6 Detection Modes

    The prospector can choose one of six detection modes that fit different conditions and parameters depending on the terrain type targets sizes and depth.

    The available detection modes include the following:

    Zero – Coins – US Coins – Jewelry- Relics – Custom

    In addition to previous detection modes, there is Pin-Pointer detection mode a non-motion All-Metal mode used to precisely locate a detected target’s position.


    Digital Target ID

    The device displays on its screen a special identifier number called the digital target identifier (Target ID), which is a number within the range 0 – 99 related to the electric conductivity of the metal.

    It gives the prospector an idea about buried object metal type as the value changes according to the metal, user with experience and expertise can link the various targets IDs to specific metal types.

    Note: this number depends on many factors including search frequency and detection mode and ground balance and soil type.

    Hybrid Audio System

    Garrett ACE Apex target audio provides the simplicity of binary audio (found on previous ACE detectors) with the additional benefits of subtle proportional audio for faint targets.

    Apex includes 5 distinct tones that provide greater audible target identification for different targets types.

    Iron Audio

    The iron audio feature is a special audio tone made by the detector to identify the presence of ferrous metal such as iron or its alloys like steel.

    Iron Audio’s unique feature helps to correctly identify complex iron objects, such as bottle caps.

    Ground Balance

    The ground balance feature in Garrett ACE APEX performed correctly due to high-resolution 175 points of ground balance resolution that fit all terrain types ranging from ferrous ground to saltwater.

    Hi-Resolution Discrimination

    The Notch Discrimination feature enables the user to discriminate between different metal types with 20 levels, 8 of them for iron.

    Ergonomic design

    Garrett ace apex metal detector is designed according to modern guidelines to make it easy to handle and carry and use in fields or beaches or parks and so

    The design of the device control panel includes intuitive efficient controls for the most frequently used settings and features with Easy-access menu adjustments for other options.

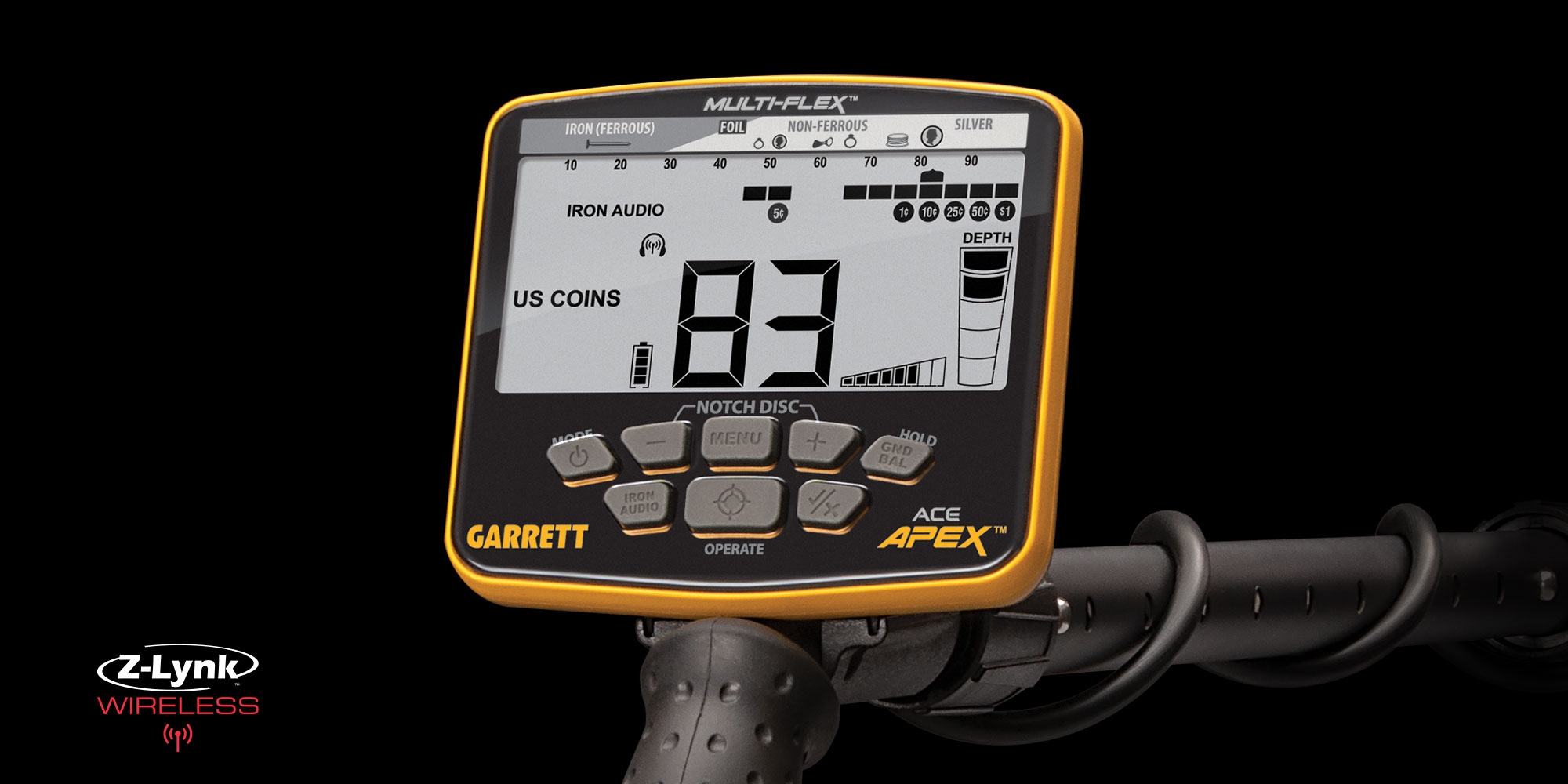

    Large LCD Screen

    Among the distinctive design features of the device is the large size of liquid crystal display (LCD), which guarantees the user the ease of reading digital ID numbers for targets and other indicators.

    Rechargeable Battery

    Built-in rechargeable lithium-ion battery provides up to approximately 15 hours of use, depending on settings and used modes and coils.

    Other Features

    – Easy to adjust volume control for both the built-in speaker and headphones.

    – 8 sensitivity/depth adjustments

    – Built-in z-lynk wireless technology up to 6 times faster than Bluetooth

    Garrett Ace Apex

  • Device program Functions


    Operating Principle VLF
    Multi-Flex™ Technology Yes
    Single Frequency Options 5, 10, 15, and 20 kHz
    Multi-Frequency Options Simultaneous Multi-Freq. and Multi-Salt
    Z-Lynk™ Wireless Technology Yes
    Fast Target Separation/Recovery Yes
    1/8″ Headphone jack Yes
    Backlight Yes
    Iron Audio Yes
    Iron Volume Control Yes
    Iron Discrimination Segments 8
    Search Modes 6, with International and U.S. Coins modes
    Sensitivity/ Depth Adjustments 8
    Ground Balance, Auto/Manual Auto, High Resolution, 175 pts
    Pinpoint Yes
    Waterproof coil/stem Yes
    Rainproof control box Yes
    Length (Adjustable) 43″ to 56″ (1.09m – 1.4m)
    Total Weight 2.5 lbs (1.13 kgs)

    First WorldWide Company

    GOLDEN DETECTOR is the best gold & metal detector’s distributor in the Middle East, which is introducing only genuine brands and products to its markets such as OKM, Minelab, GeoGround, Mega Locators, and many more.

    GOLDEN DETECTOR Group is specializing in all geological tools and digital precision technology for the detection of gold, metal, minerals, and groundwater


– The main device and processing unit

– A small sensor attached as a gift

– The handle (stand) is detachable

– Headphones

– Made in America

– The educational disc on the device (DVD)

– English catalogs

Click Here To View Catalogue

Additional information


Made In
